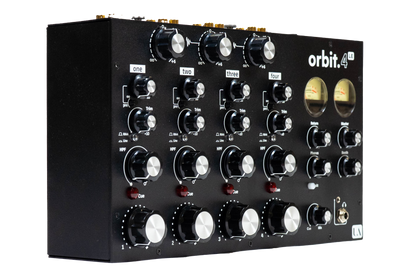

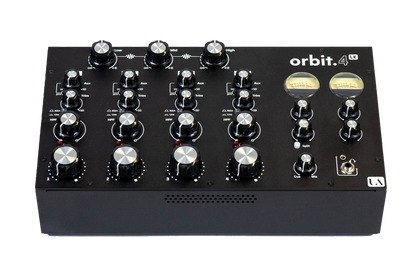

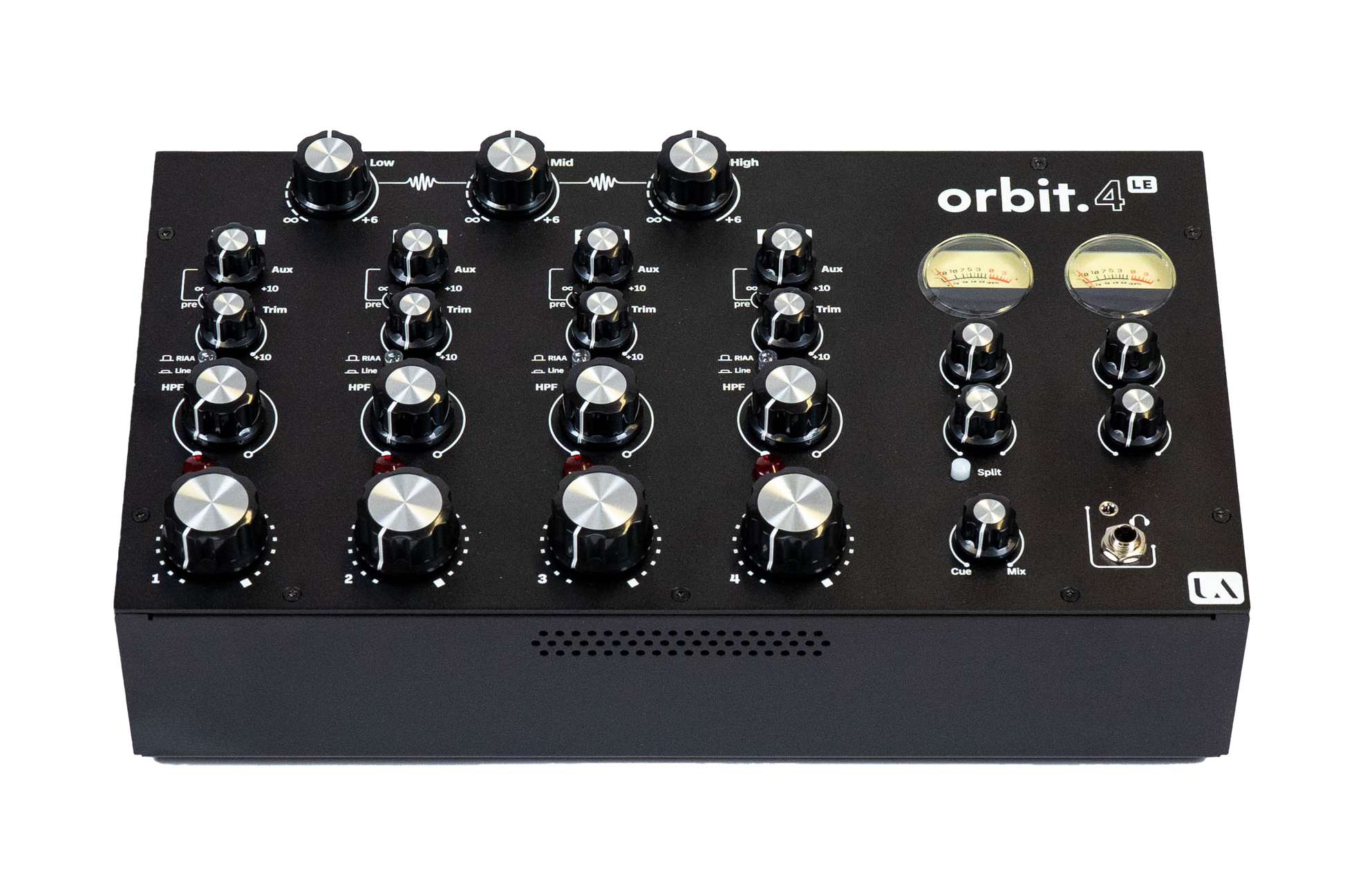

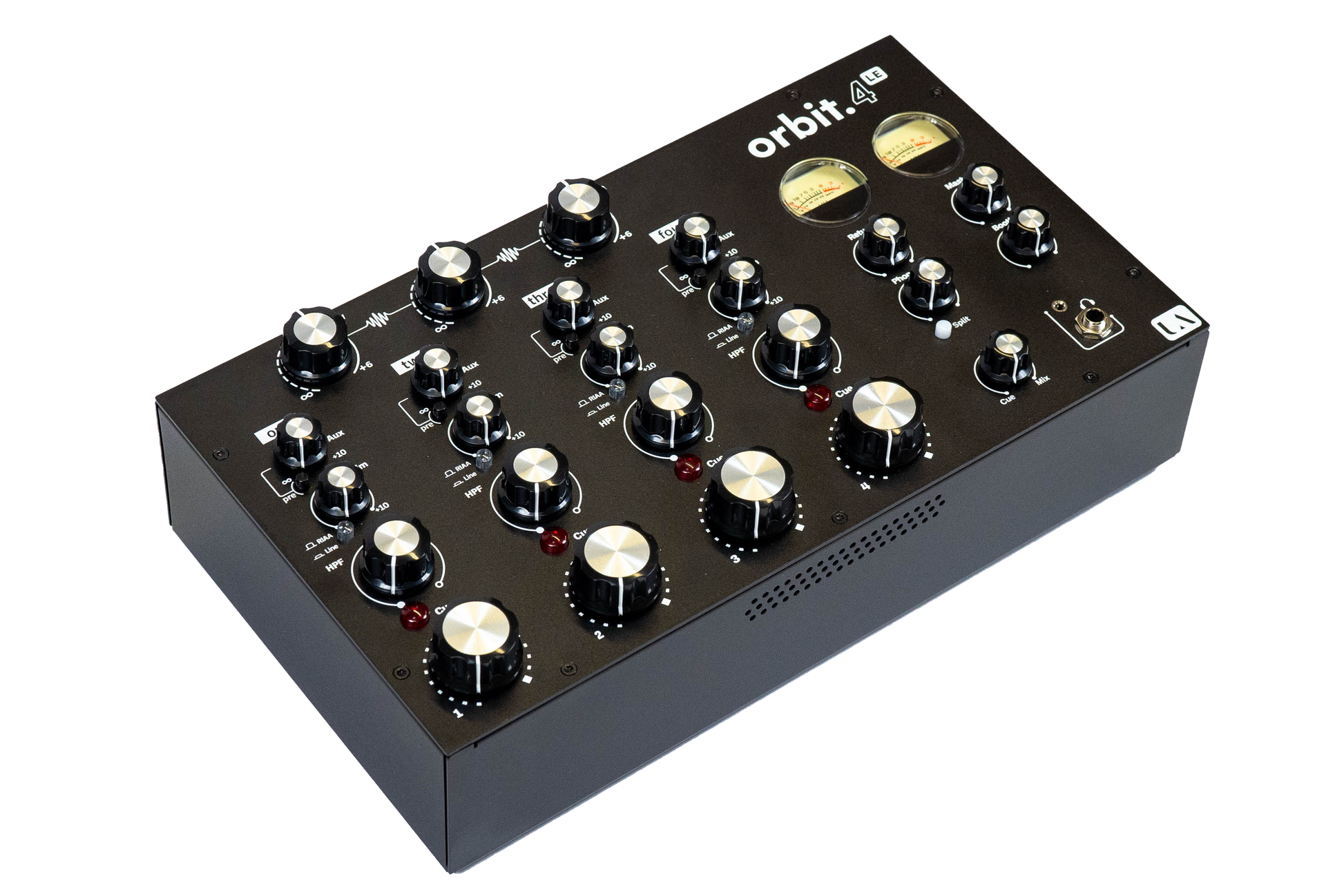

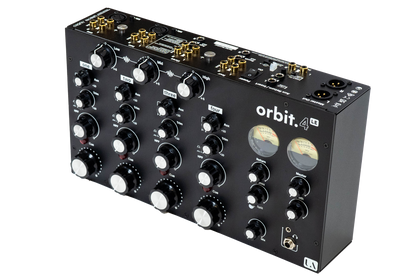

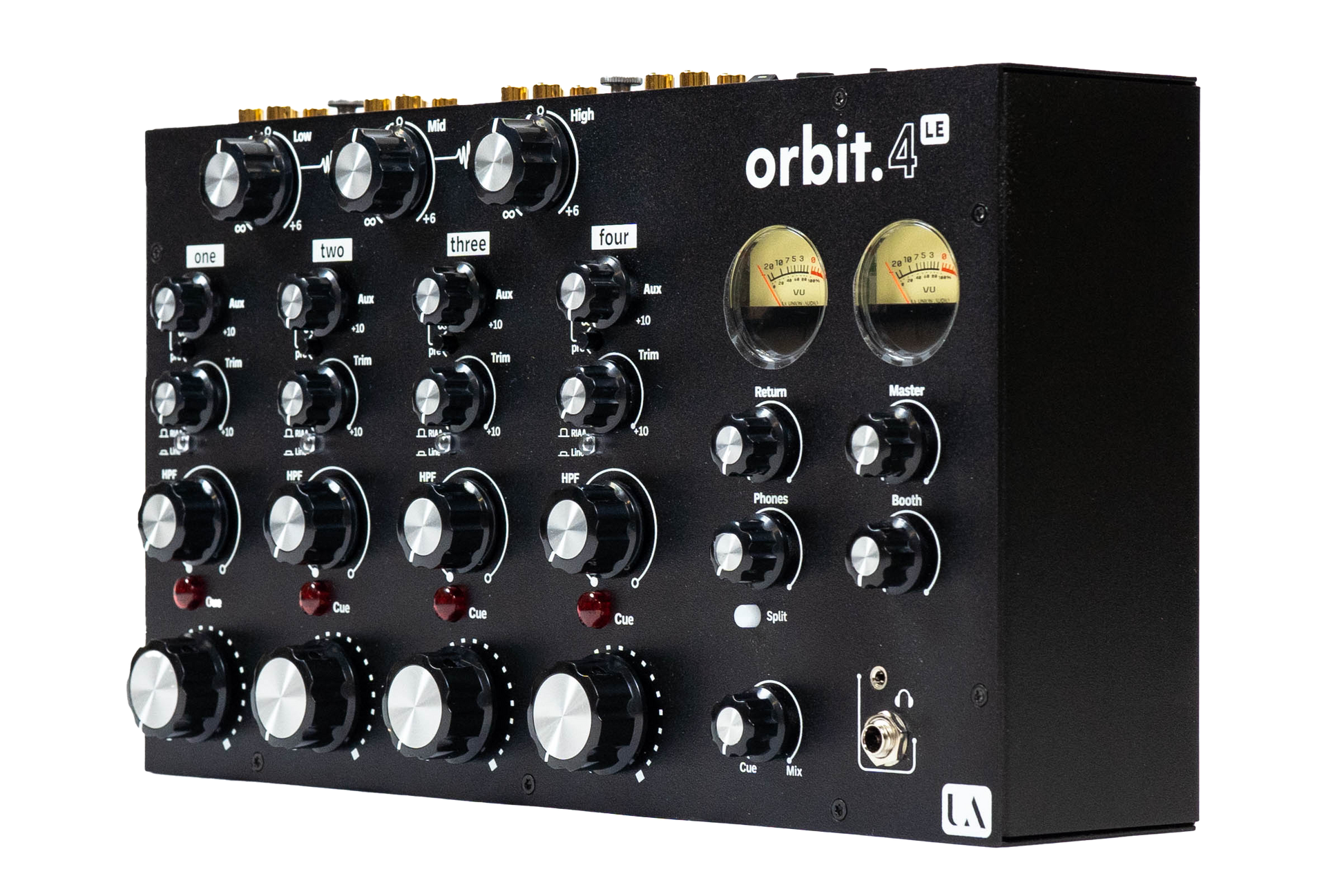

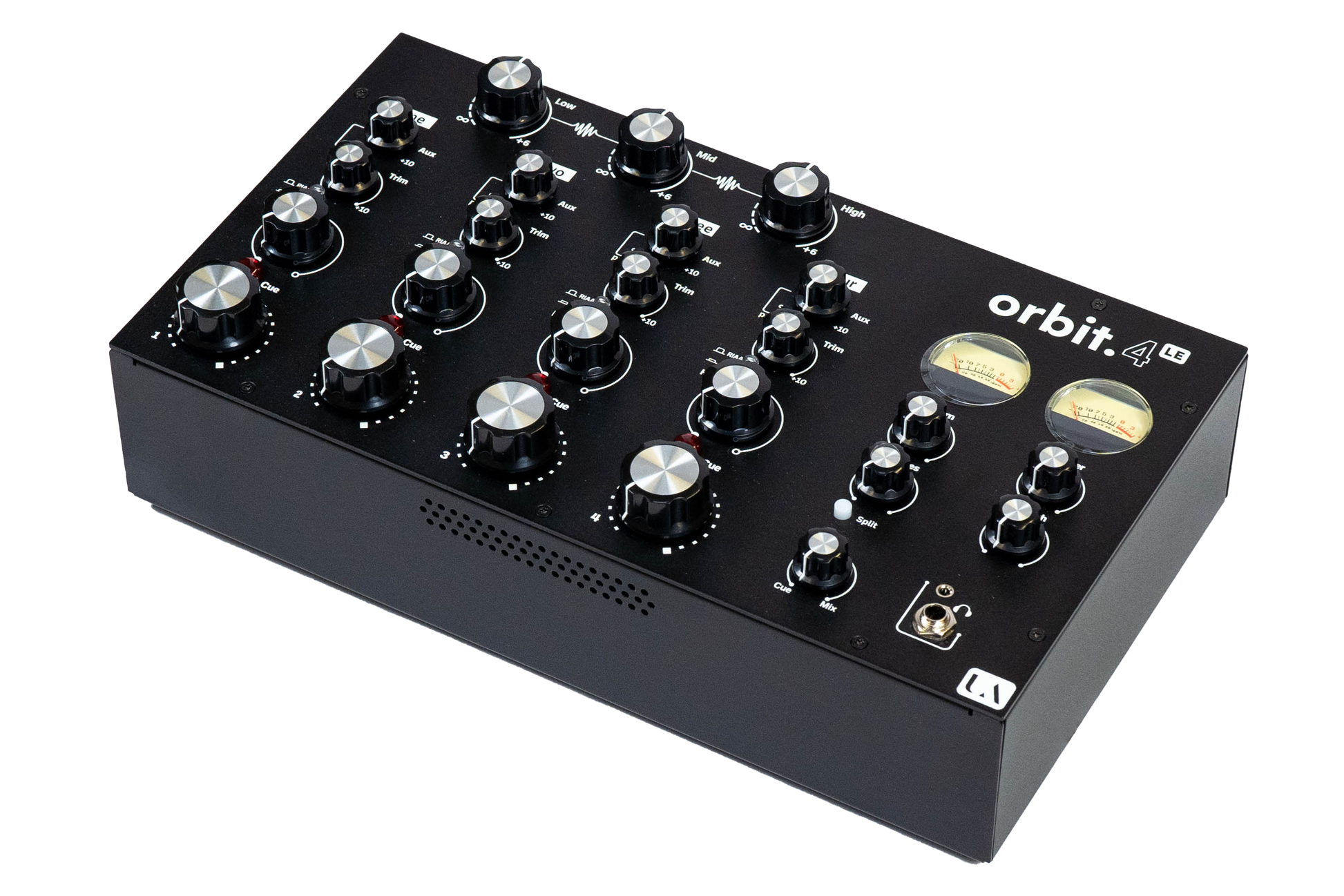

orbit.4 LE

Overview

For those with a requirement for four channels, the orbit 4 LE builds on the heritage of its smaller sibling, featuring an addition two channels, plus dual Microphone inputs in a slightly larger format.

The versatile orbit.4 LE is equally at home installed in bars and clubs as it is as the centrepiece for the discerning home producer.

Product Description

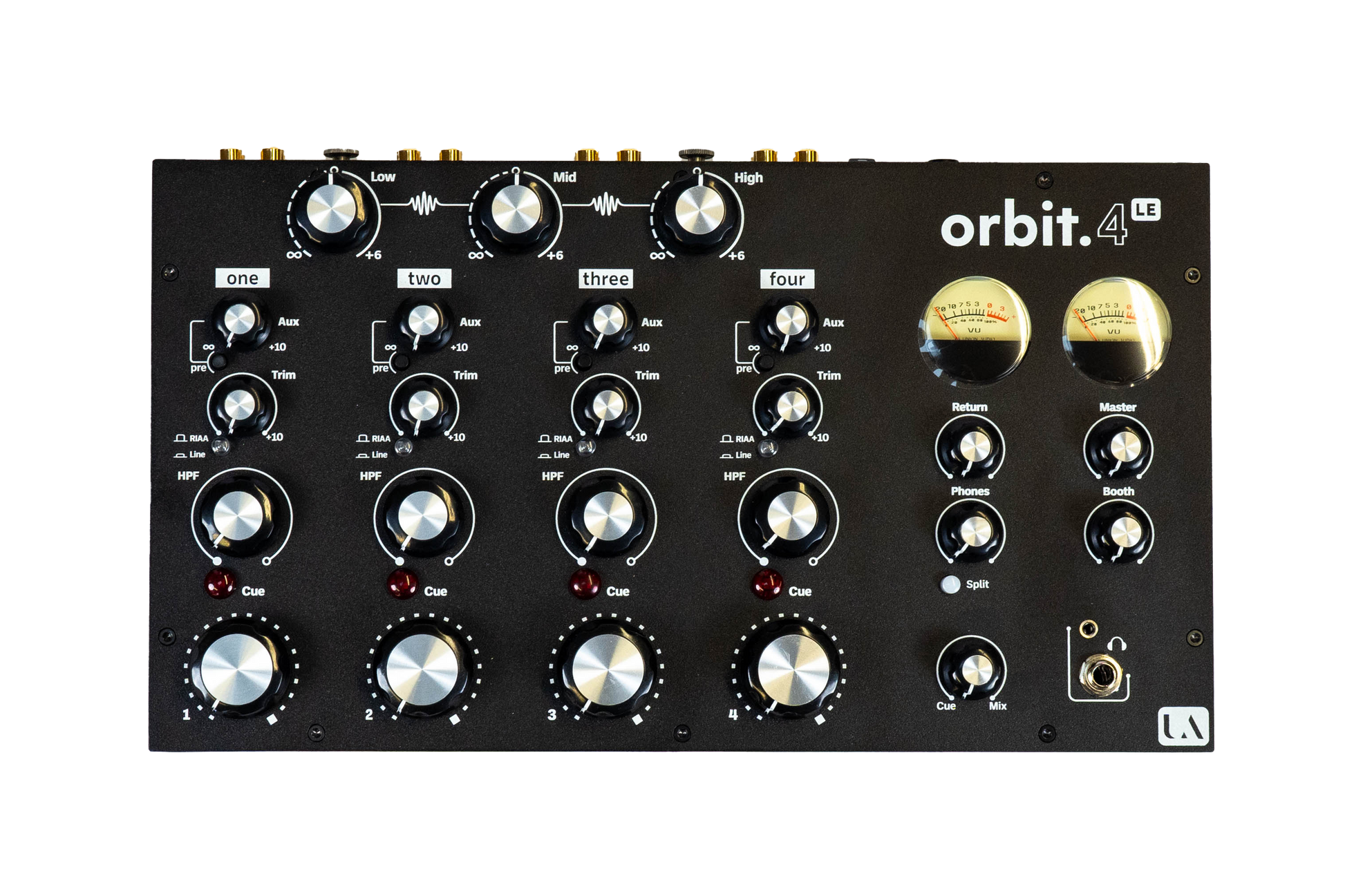

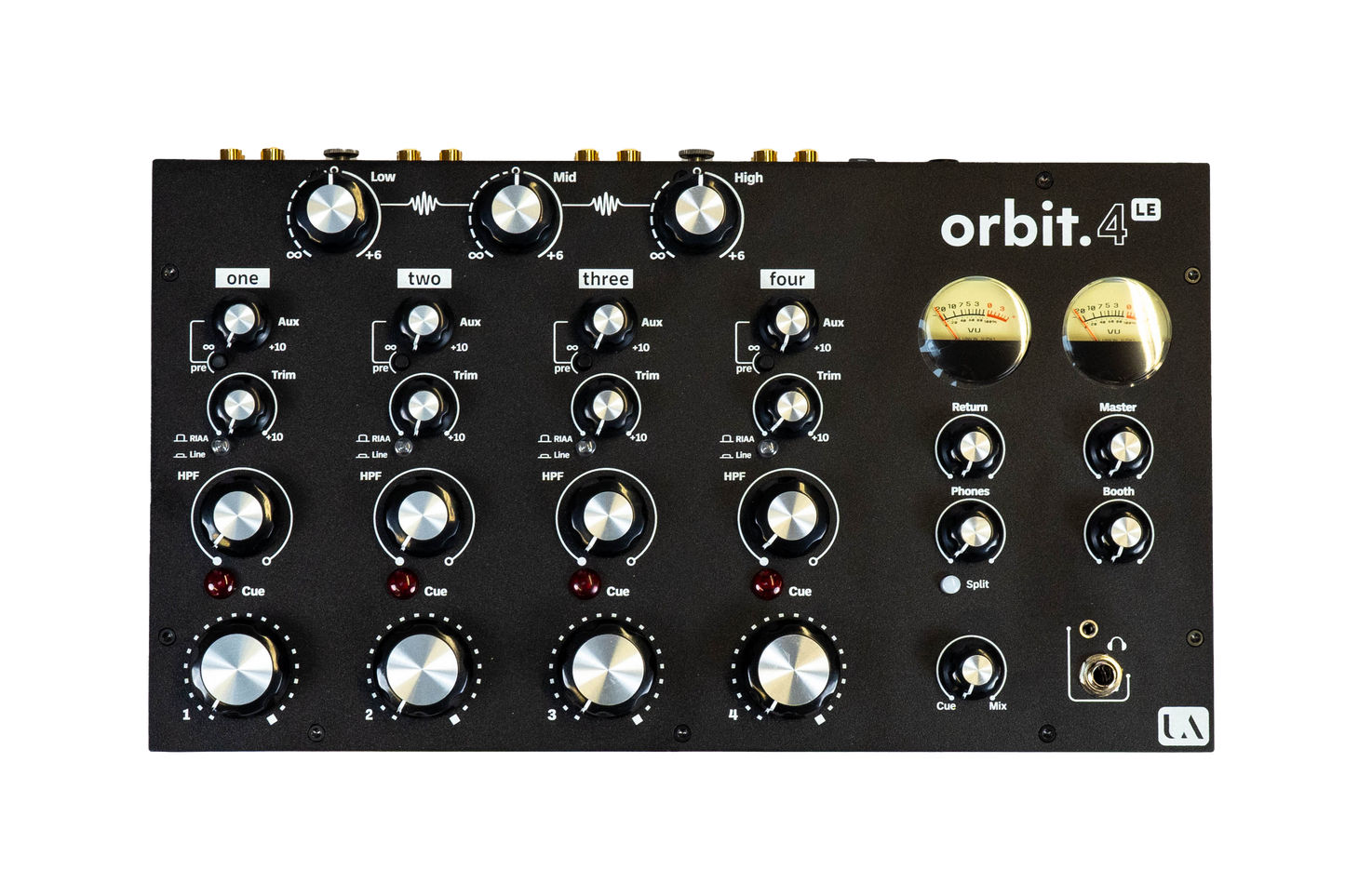

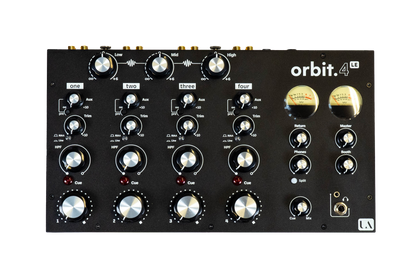

Engineered to deliver a superior DJing experience, this mixer features four fully independent channels, each equipped with high-quality phono pre-amplifier and line inputs, high-pass filter with variable Q, FX Send with pre/post switch, and a precise Alps rotary fader.

The Master section features separate level controls for Master Out, Booth Out, and Aux Return, with accurate signal monitoring via two backlit custom analogue VU meters.  The powerful headphone amp features both Split Cue and Cue/Mix, with 1/4” and 3.5mm headphone jack sockets for maximum versatility.



Additional Highlights

Add Mix—enabling control of what you hear in your phones to ensure you make the most out of your mix.

Three Band Isolator: full cut to +6db of boost per band. With crossovers between 110Hz and 3KHz giving many options to shape the sound of your mix.

HPF with variable Q: as the HPF is rotated so the Q increases in that traditional analogue way.

Master Insert Jacks: for adding additional signal processing such as compressors, graphic EQ, or effects.

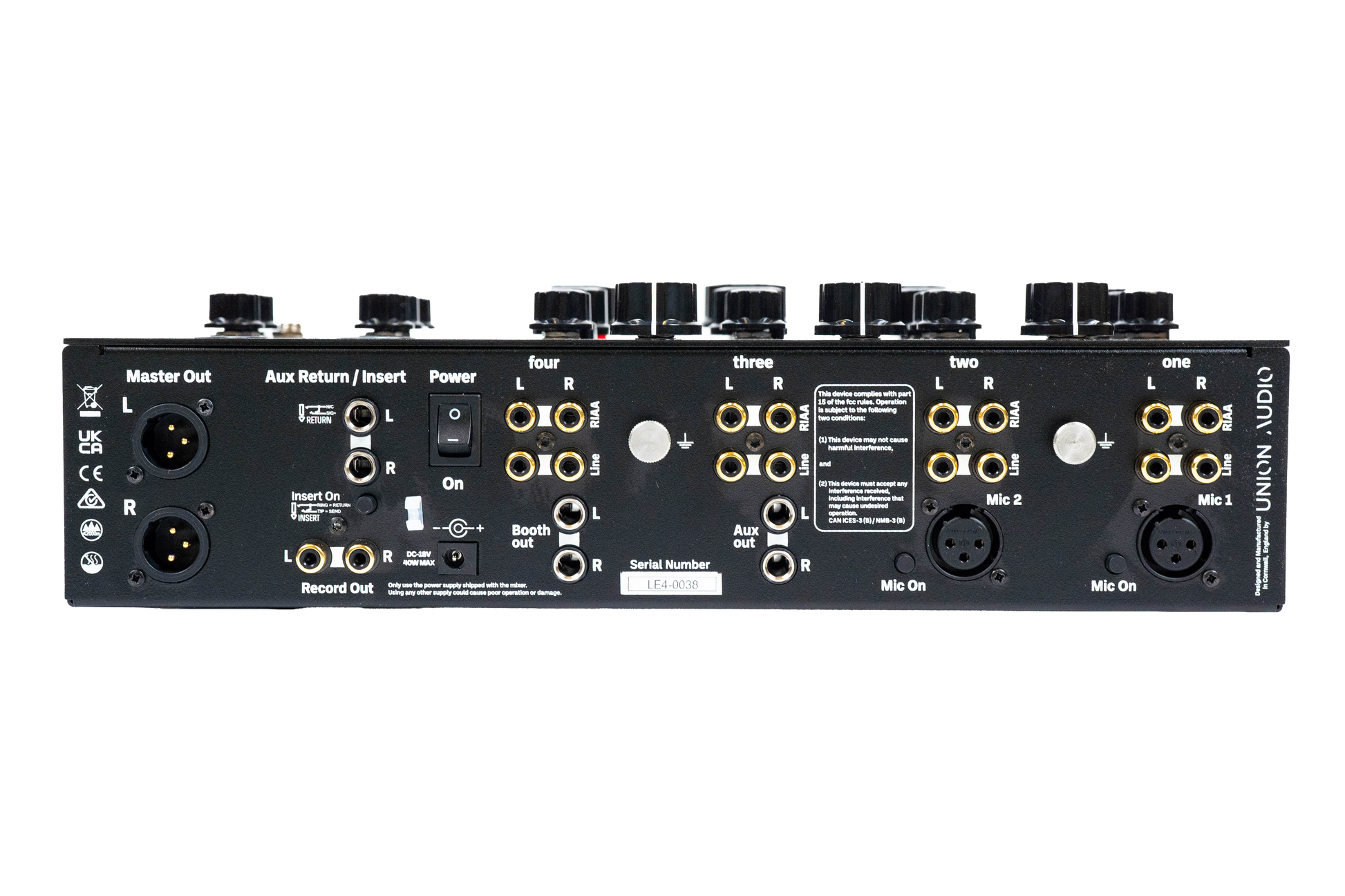

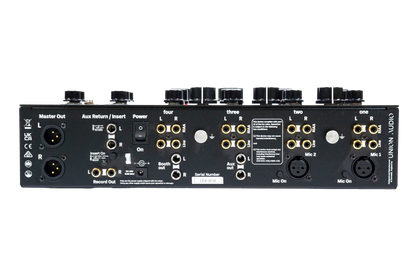

Dual Microphone Inputs: rear panel mounted with balanced XLR and ON switch.

Balanced Outputs: Master Output fully balanced XLR

Technical Specification

Distortion plus Noise (THD+N) un-weighted

0dBu, 20Hz to 20kHz, Line In to Mix Out +4dBu

0.005%

Frequency Response

Line in to Mix Out	+/-2dB 20Hz - 100kHz
RIAA Accuracy	+/-1dB 20Hz to 20kHz

Shutoff and Crosstalk

Fader Shutoff	> -80dB
L/R Crosstalk Line in to Mix Out 1kHz	<-75dB

Noise 22Hz to 22kHz Un-Weighted

Residual Mix Output noise	<-90dBu
Line In to Mix Out Unity	<-85dBu
Maximum Output Level Mix Out 0.5% THD	+27dBu
Dynamic Range	117dB

EQ and Filter Frequency

Channel High-Pass Filter Fully Clockwise	-3dB/1500Hz
Master 3 Band Isolator	200Hz, 800Hz, 2000Hz

Headphone Amplifier

Maximum output level

750mW RMS - 33 ohms

Power Supply

Type	External SMPSU
Mains Voltage range	90-260VAC
Output	12V DC 50W
Efficiency	LEVEL VI

Dimensions

Dimensions – LE4 Mixer

Height	195mm
Width	350mm
Depth	88mm
Weight	3.5kg

Packed Dimensions – LE4 Mixer

Size L × W × H	48cm × 28cm × 20cm
Weight	4.6kg (10lb)
