elara.6

Overview

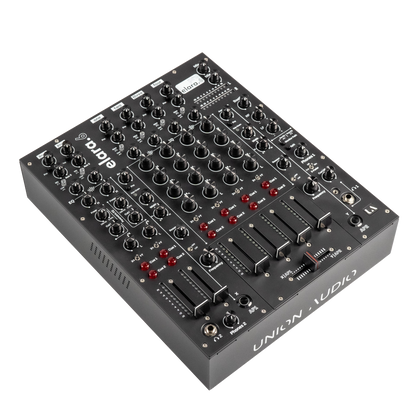

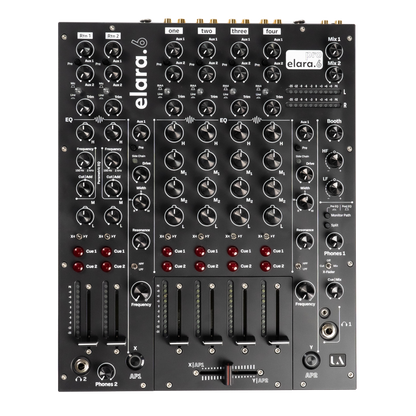

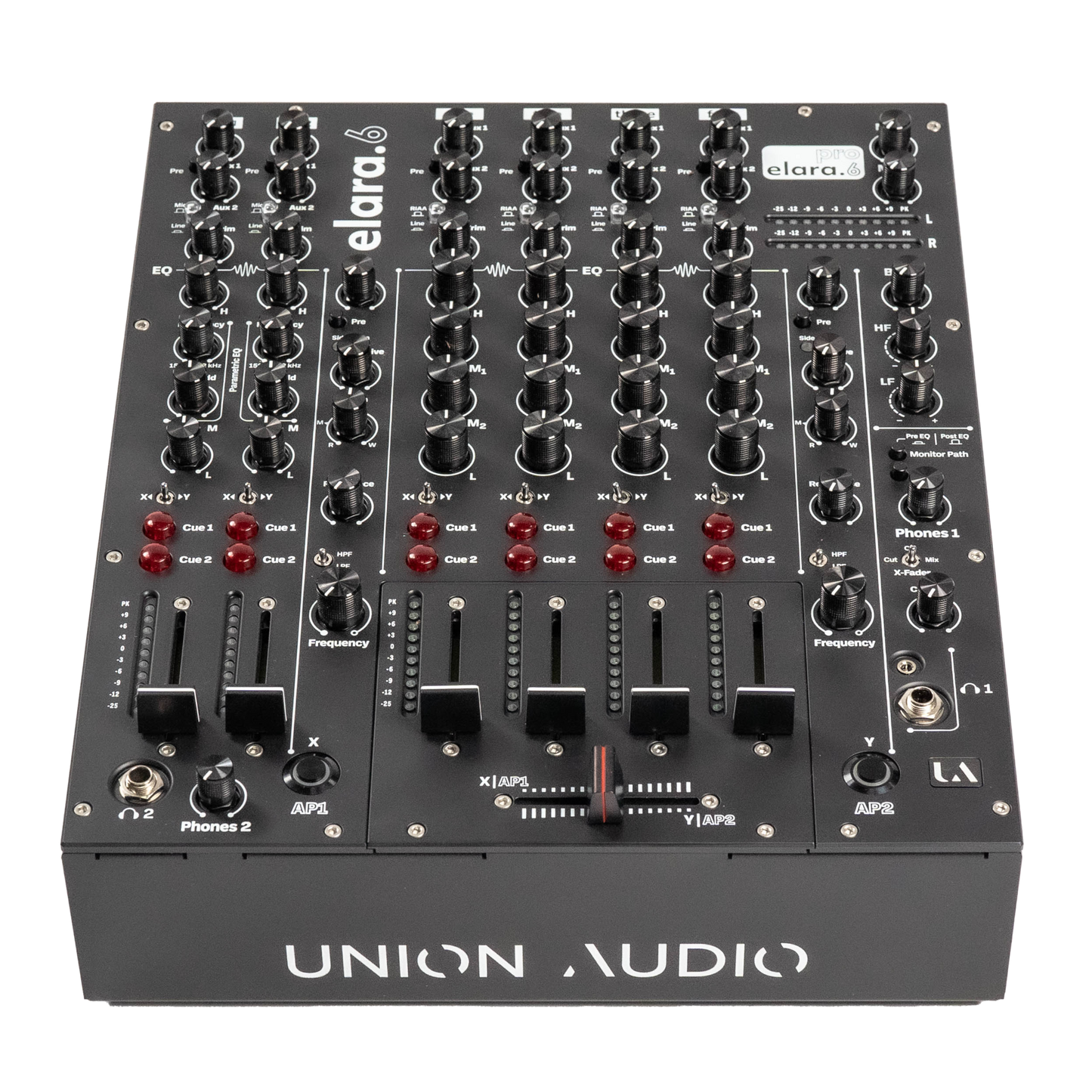

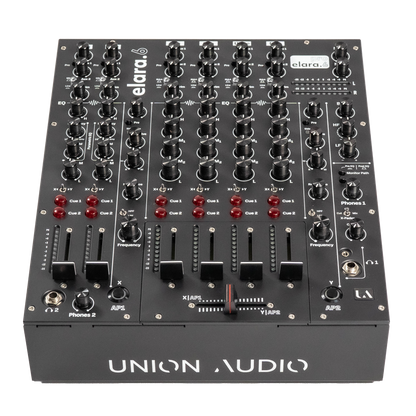

The elara.6 is a premium, no-compromise, audio mix tool designed for both club installation and the professional DJ/Live- Producer.

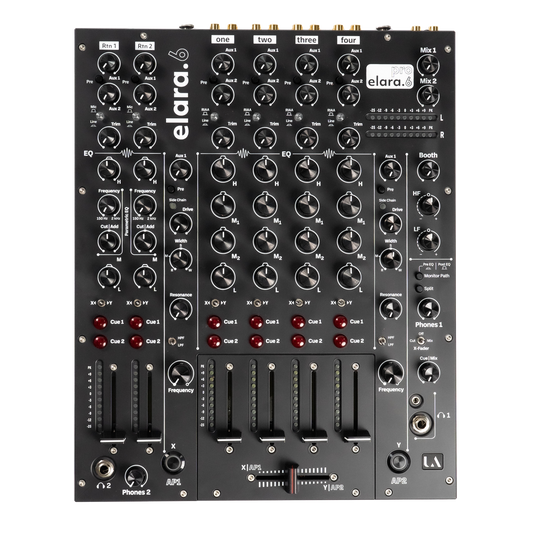

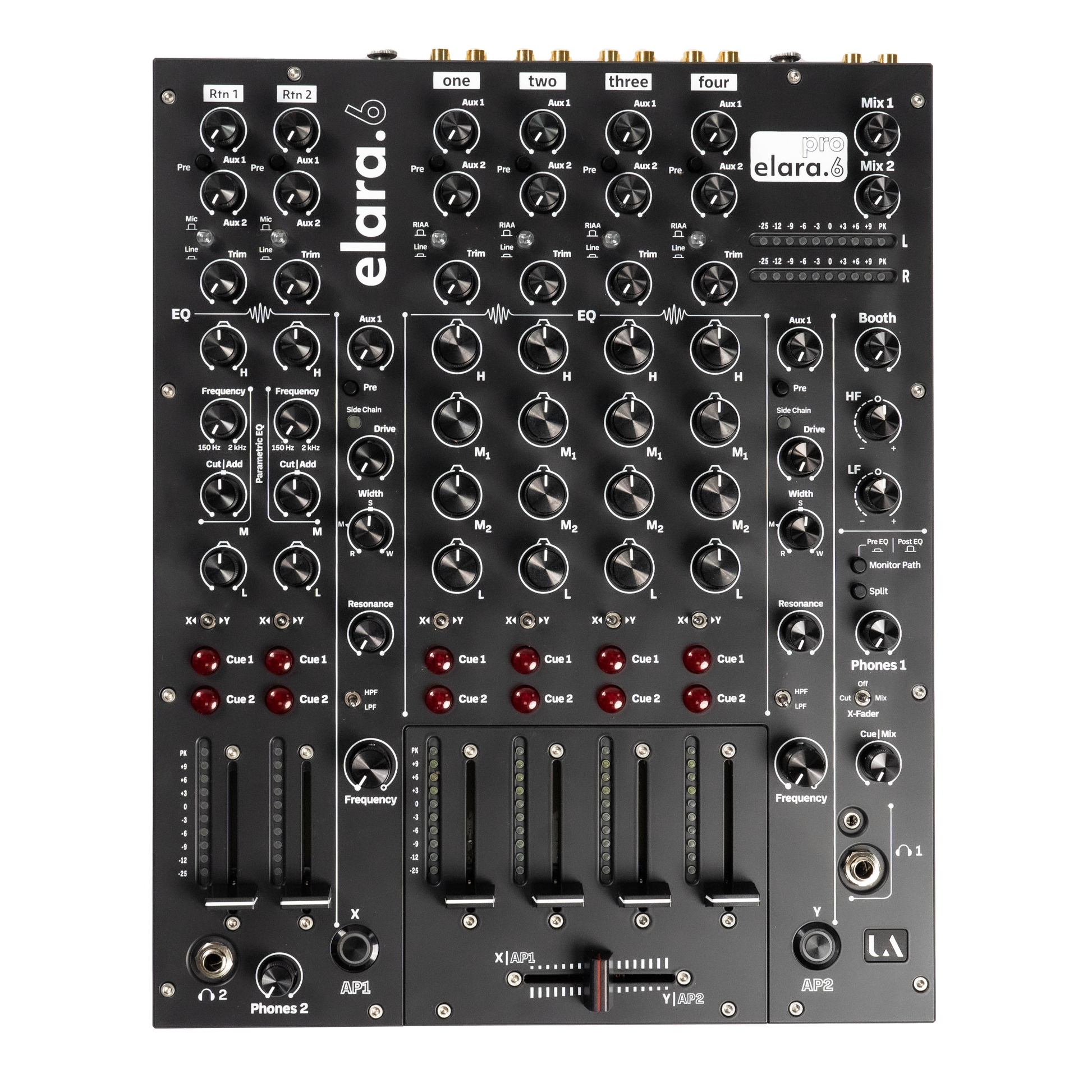

The elara.6 features four, dual input channels, each with a 4-band EQ, carefully tuned for maximum musicality, and two Auxiliary sends. In addition, each channel has a dual Cue for easy artist handover, or Back-to-Back sets, and a beautifully weighted fader with an ultra-linear curve.

On either side of the four main channels are the two Analogue Processing (AP) strips, taking creativity to new levels . Each AP section features a raft of creative tools - Filter (switchable High-Pass or Low-Pass) with Resonance and Frequency controls. The Drive control, with active side-chain, can be used to add subtle character to the mix, or maxed for the darkest, deepest distortion, while retaining high frequency clarity and stereo imagery.

Unique to the elara.6 is the audio Width control. This adjusts the stereo content of each track from Mono to Reverse Stereo, to Extra-Wide. Used in conjunction with the Filters and Drive, the Width control allows you to create euphoric transitions or moody breakdowns, at the press of a button.

For further audio processing, the output from each AP can be routed to the Auxiliary 1 Send, either pre or post the AP ON switch. The two Mic/Stereo Returns feature a 4-band EQ with semi-parametric swept mid, plus a further 2 Auxiliary Sends and dual Cue system. The Returns can also be routed to the AP system and Crossfader.

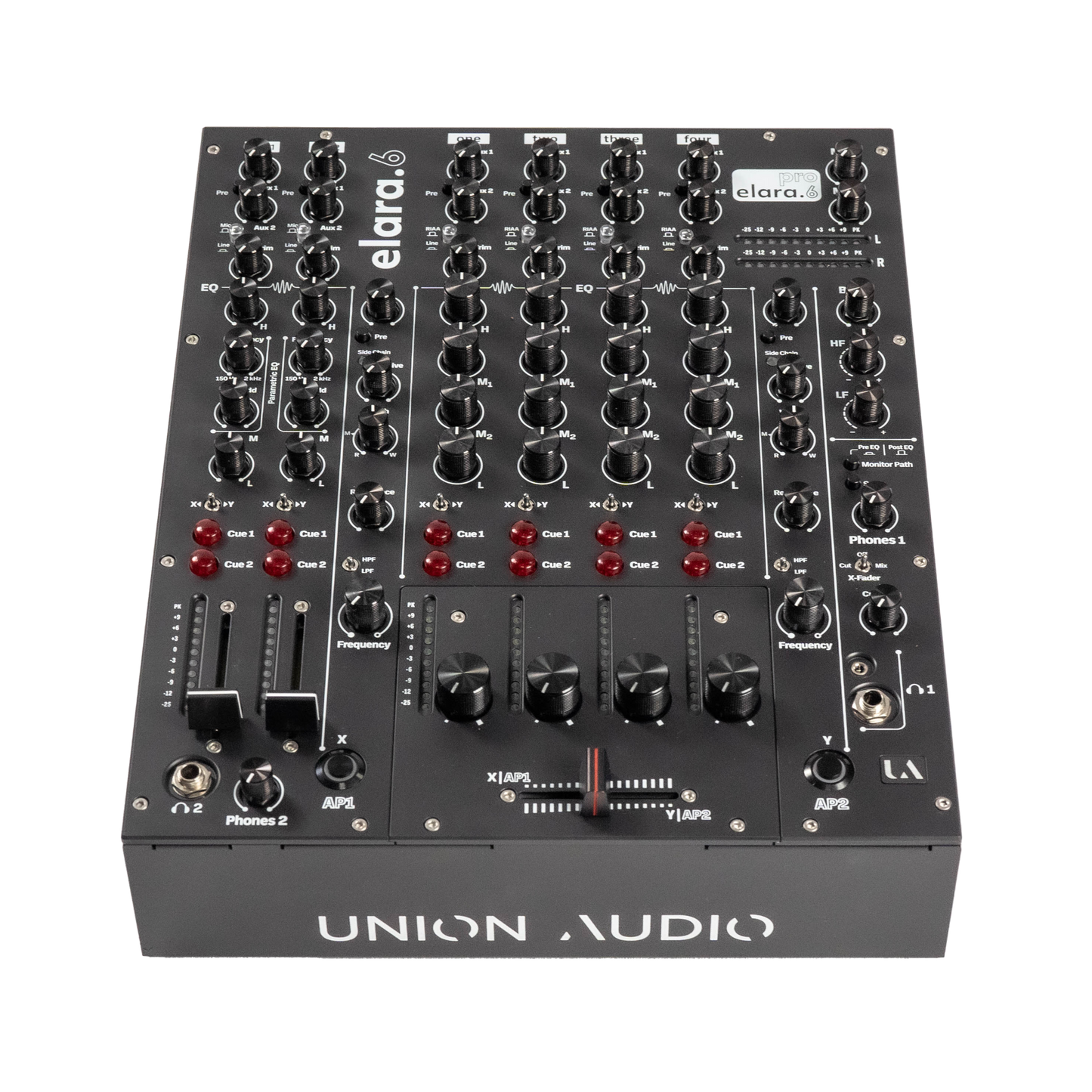

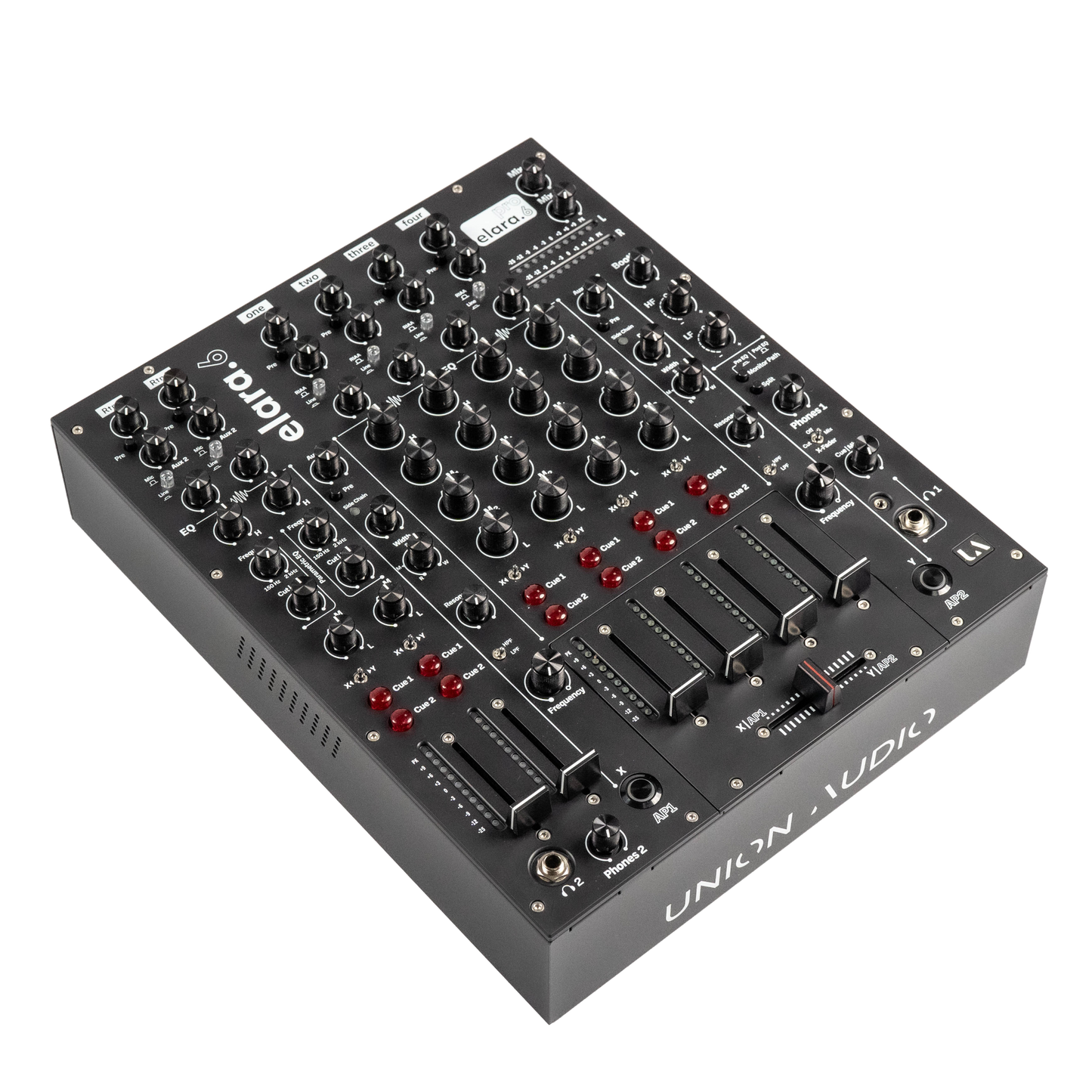

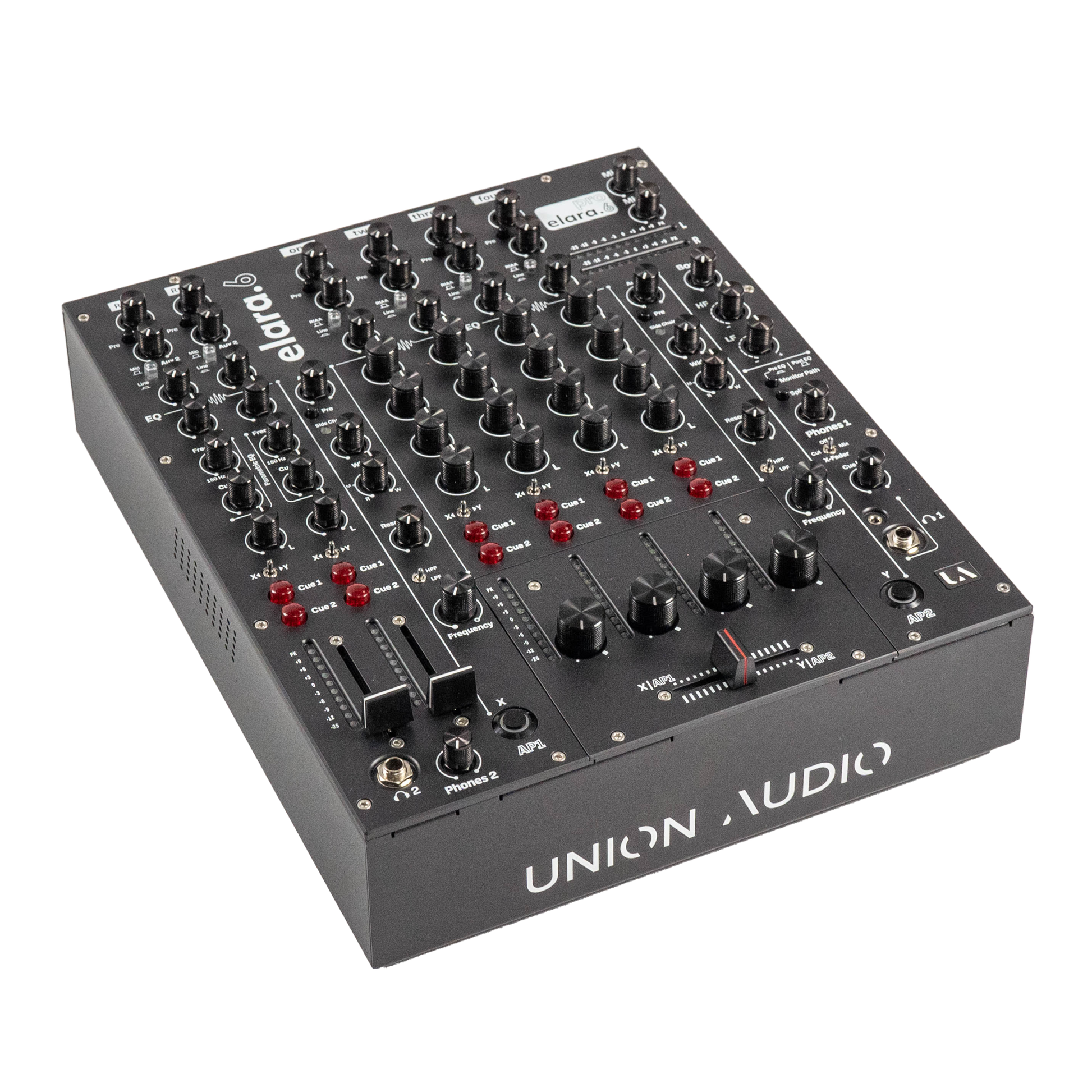

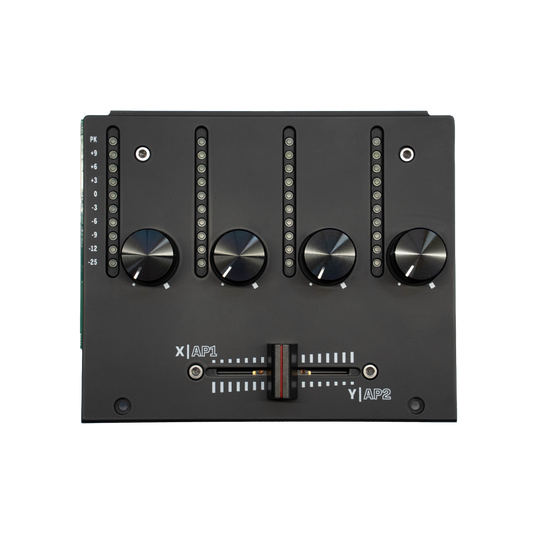

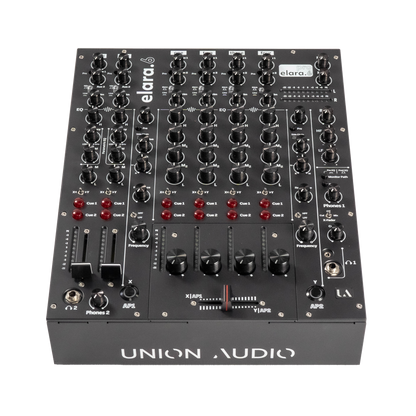

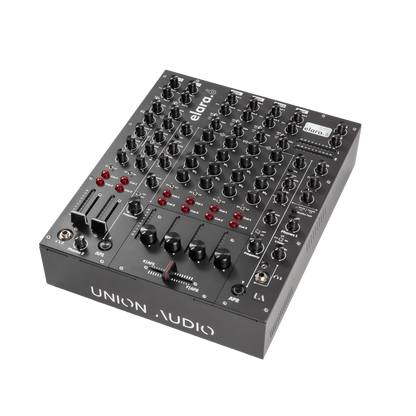

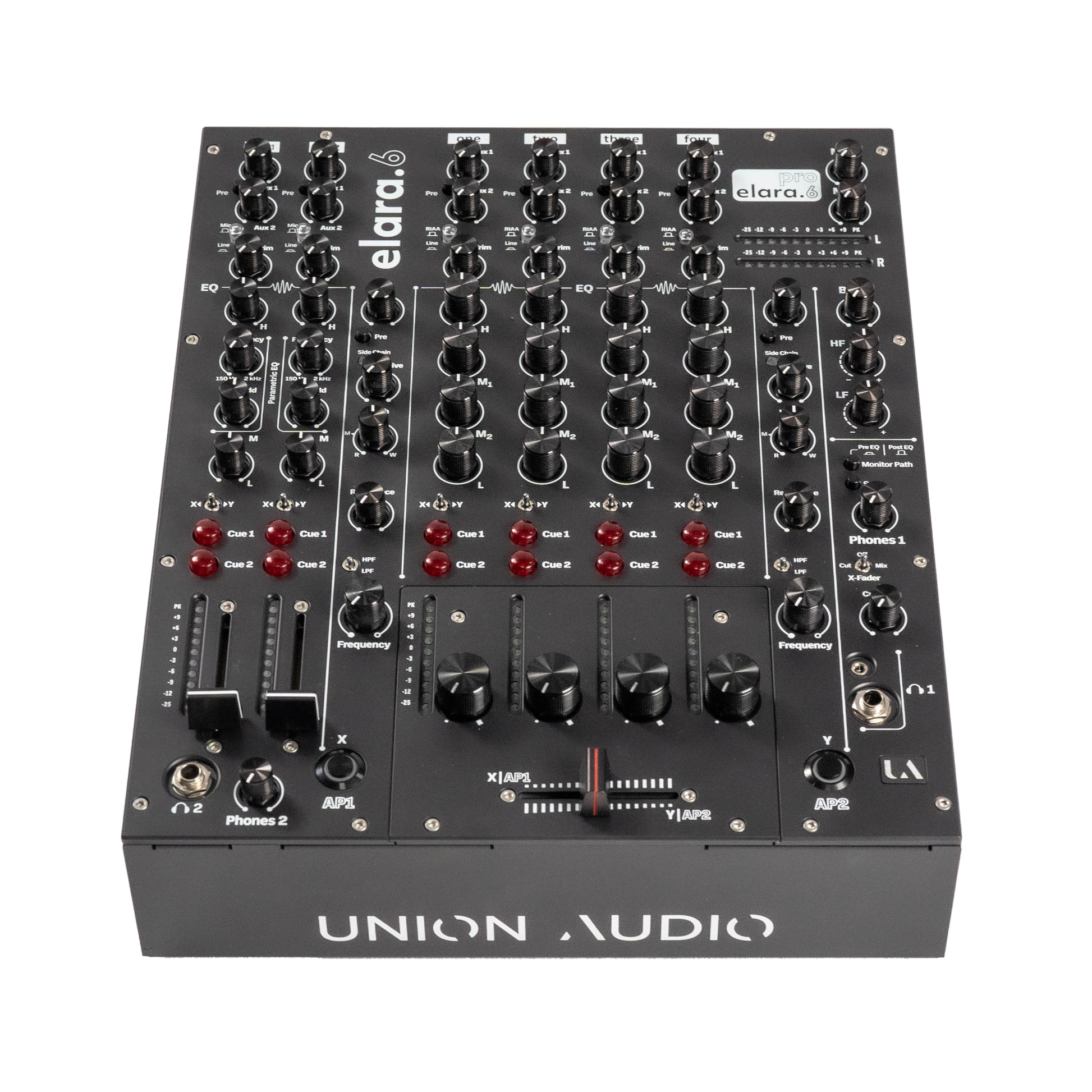

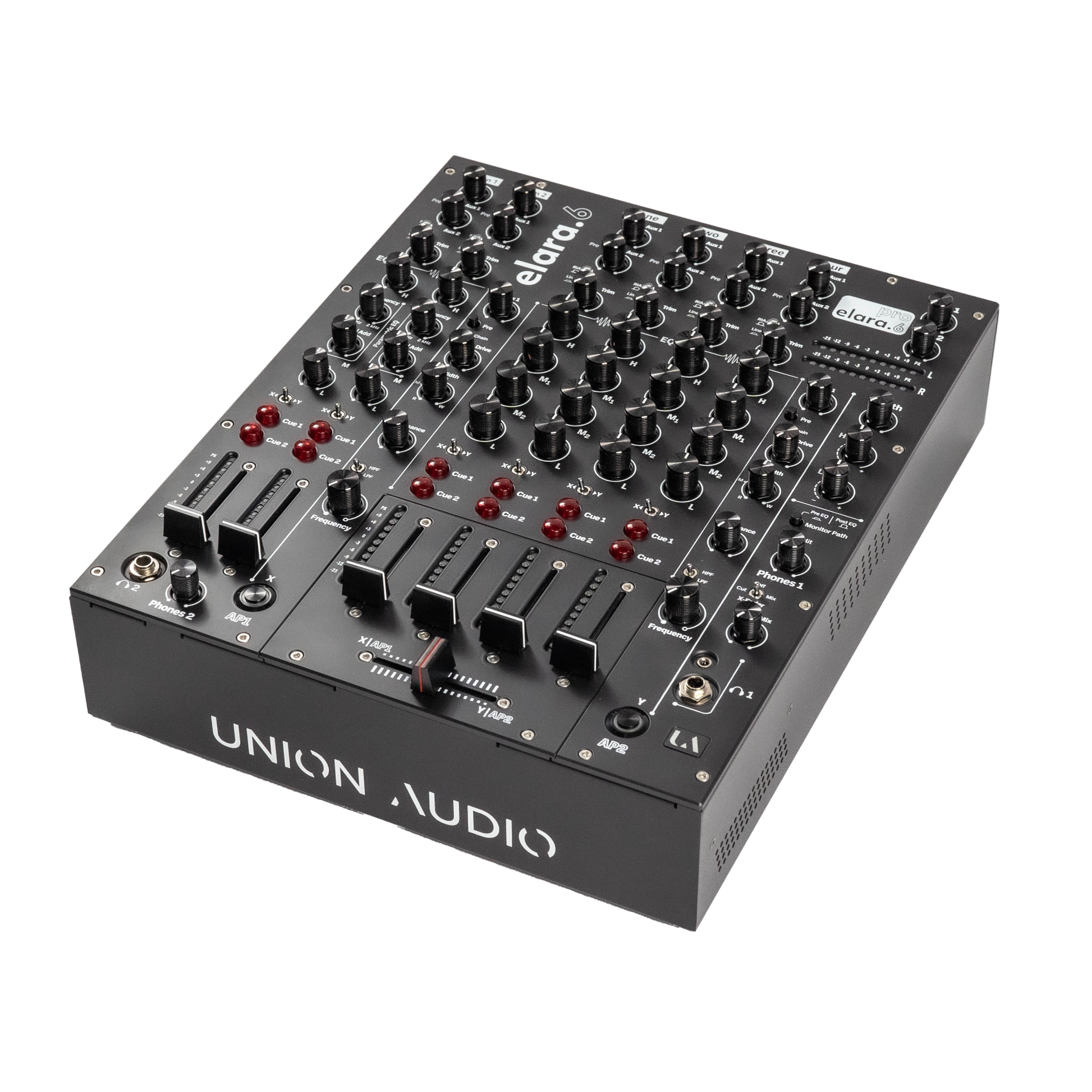

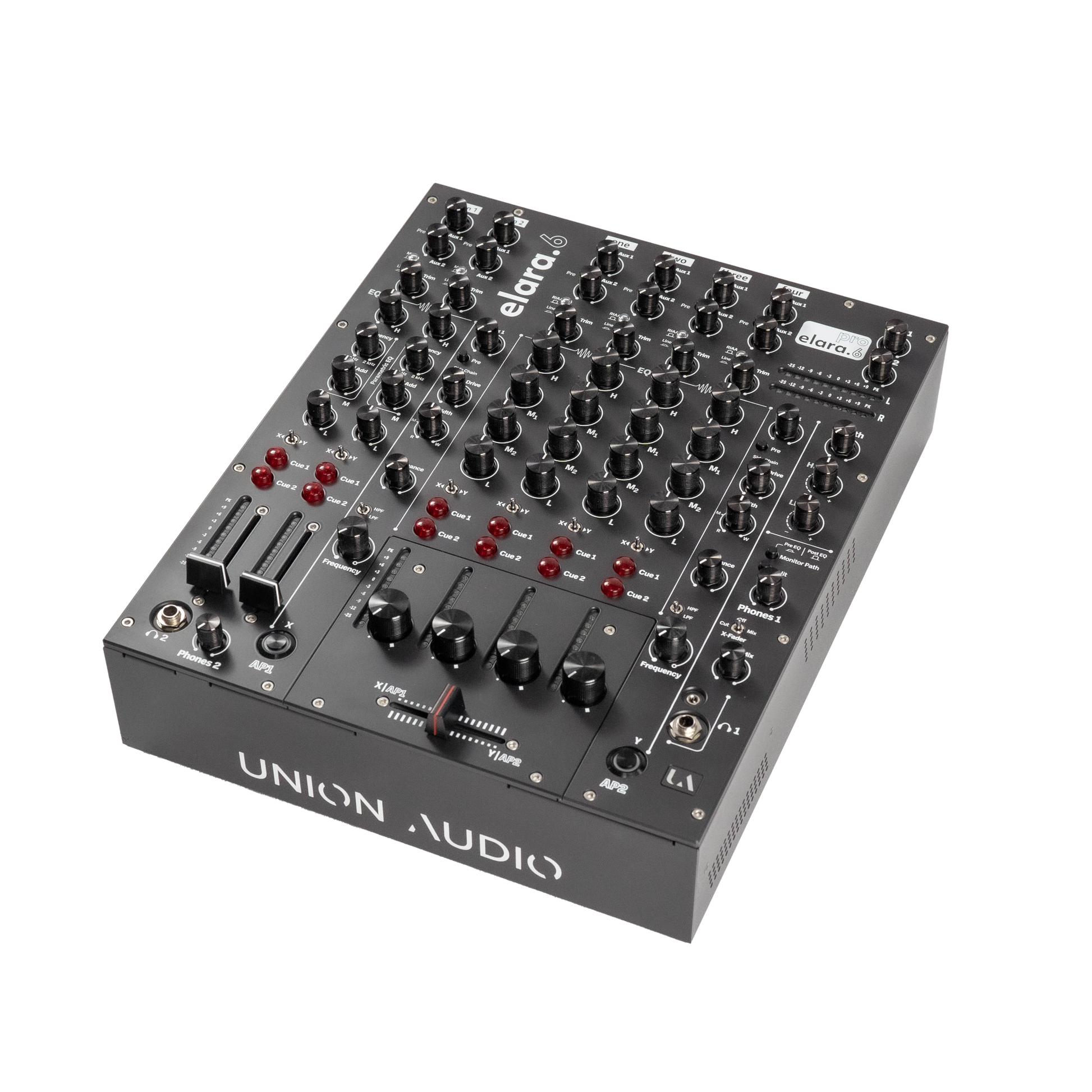

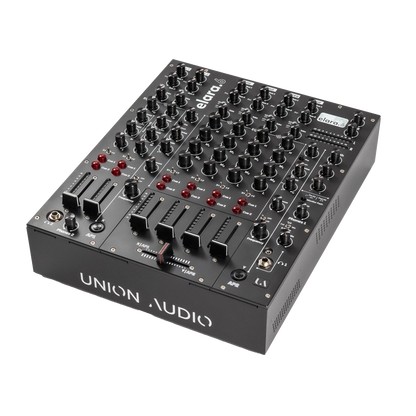

Finally, the elara.6 can easily be reconfigured as either a Linear Fader or Rotary Fader mixer just by swapping over the optional fader plates, a process that takes less than a minute.

Additional Highlights

· Premium construction with fully machined alloy panel.

· Internal universal voltage power supply.

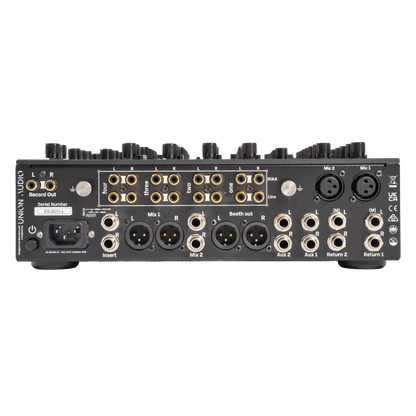

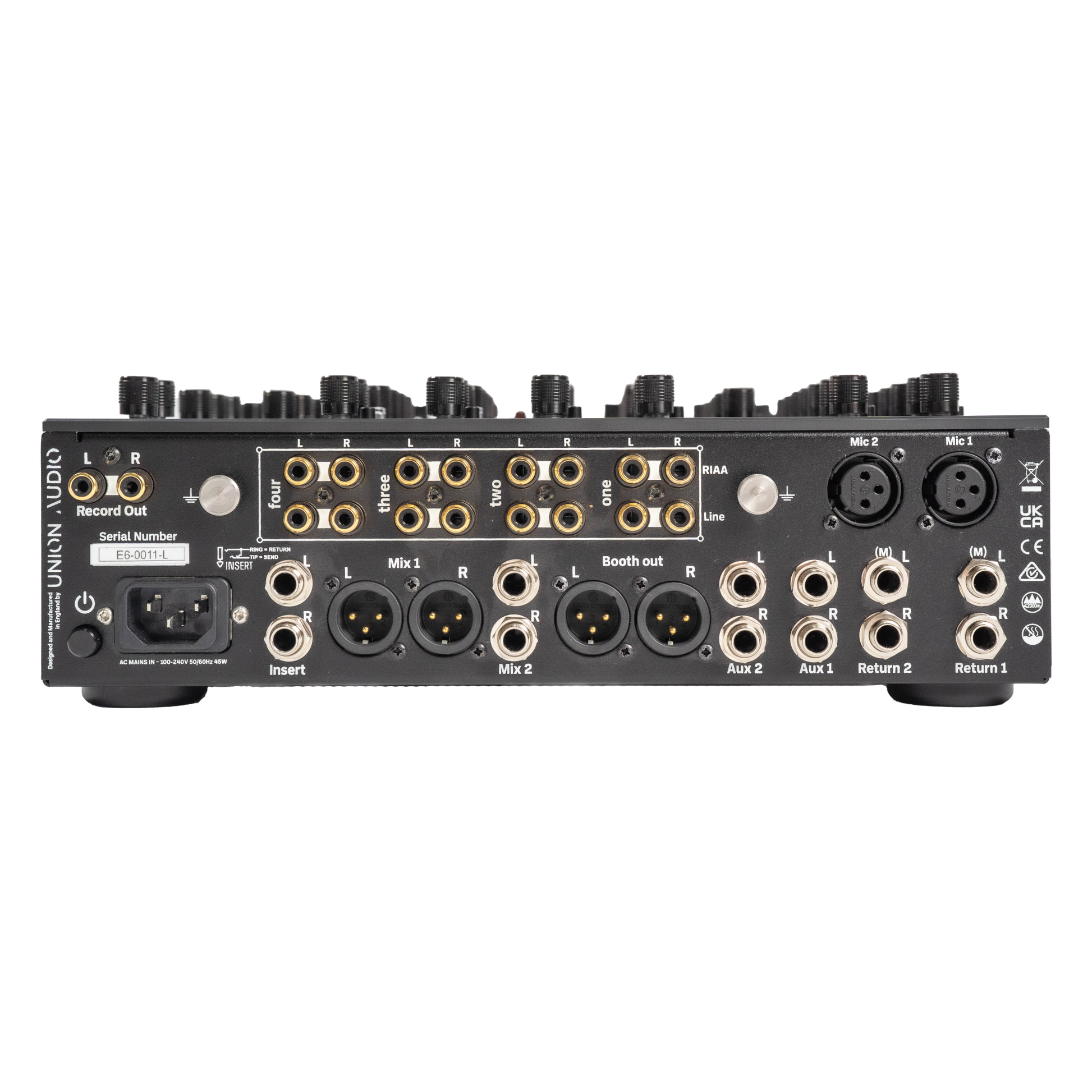

· Booth Output with balanced XLR

· Innofader crossfader with adjustable curve

· Pre/Post EQ monitoring, with Split and Cue/Mix.



Tech Specs

Performance Specifications

Maximum Output Level	+27dBu Balanced, +22dBu Unbalanced
Output Impedance	<1R Balanced, 100R Unbalanced
Noise (Line In to Line Out Unity)	-80dBu Un-weighted, 22Hz to 20kHz
Residual Noise	-92dBu Un-weighted, 22Hz to 20kHz
Dynamic Range	>114dB
Frequency Response	10Hz - 50kHz +0/-1dB
Distortion (THD+N)	0.03% Line In to Mix 1 Out, 0dBu Unity Gain
Control Attenuation	Better than 80dB
Inter-channel Crosstalk	< -100dB
Left/Right Crosstalk	-80dB @ 1kHz
Maximum Headphone Output	850mW RMS into 45 Ohms (Cue 1)
Power Consumption	40W maximum

Dimensions

Weight and Dimensions

Weight	5.30kG
Packed Weight	7.5kG
Dimensions	L37cm x W30cm x H8cm
Packed Dimensions	L47cm x W41cm x H22cm
