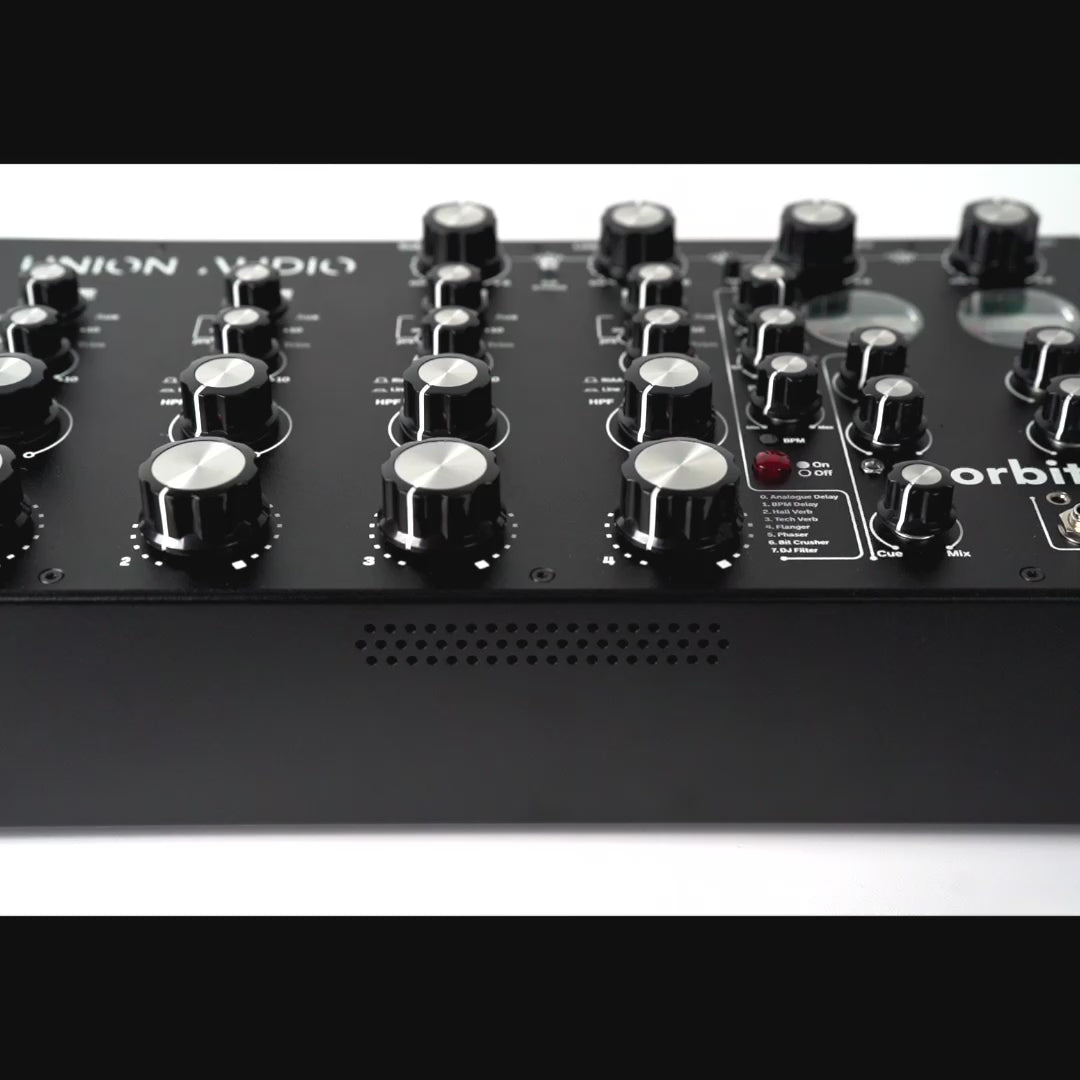

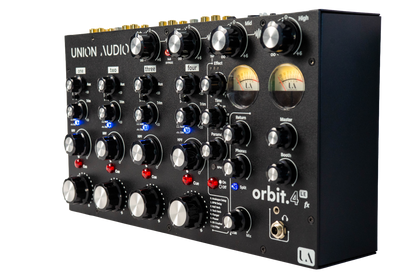

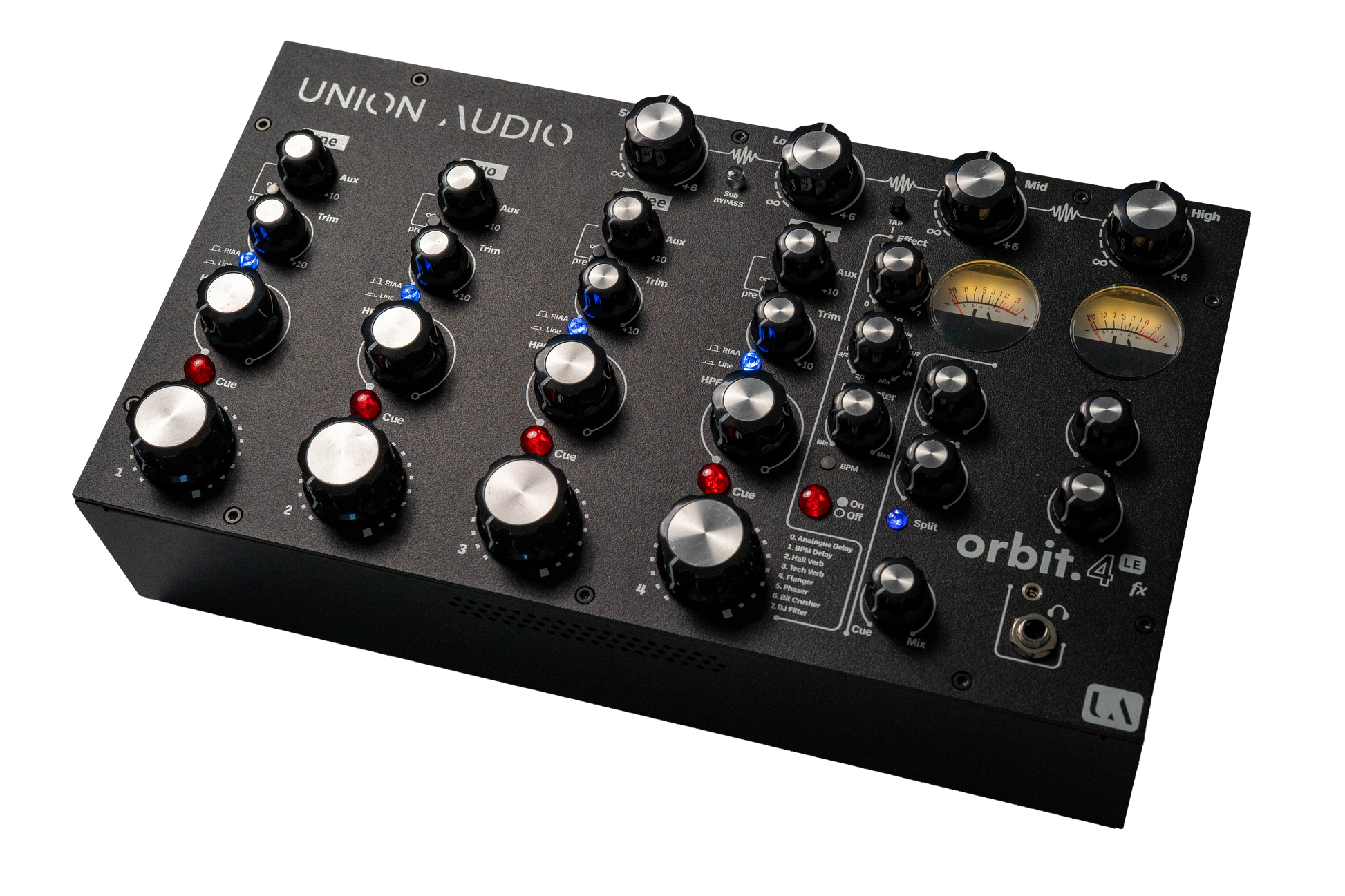

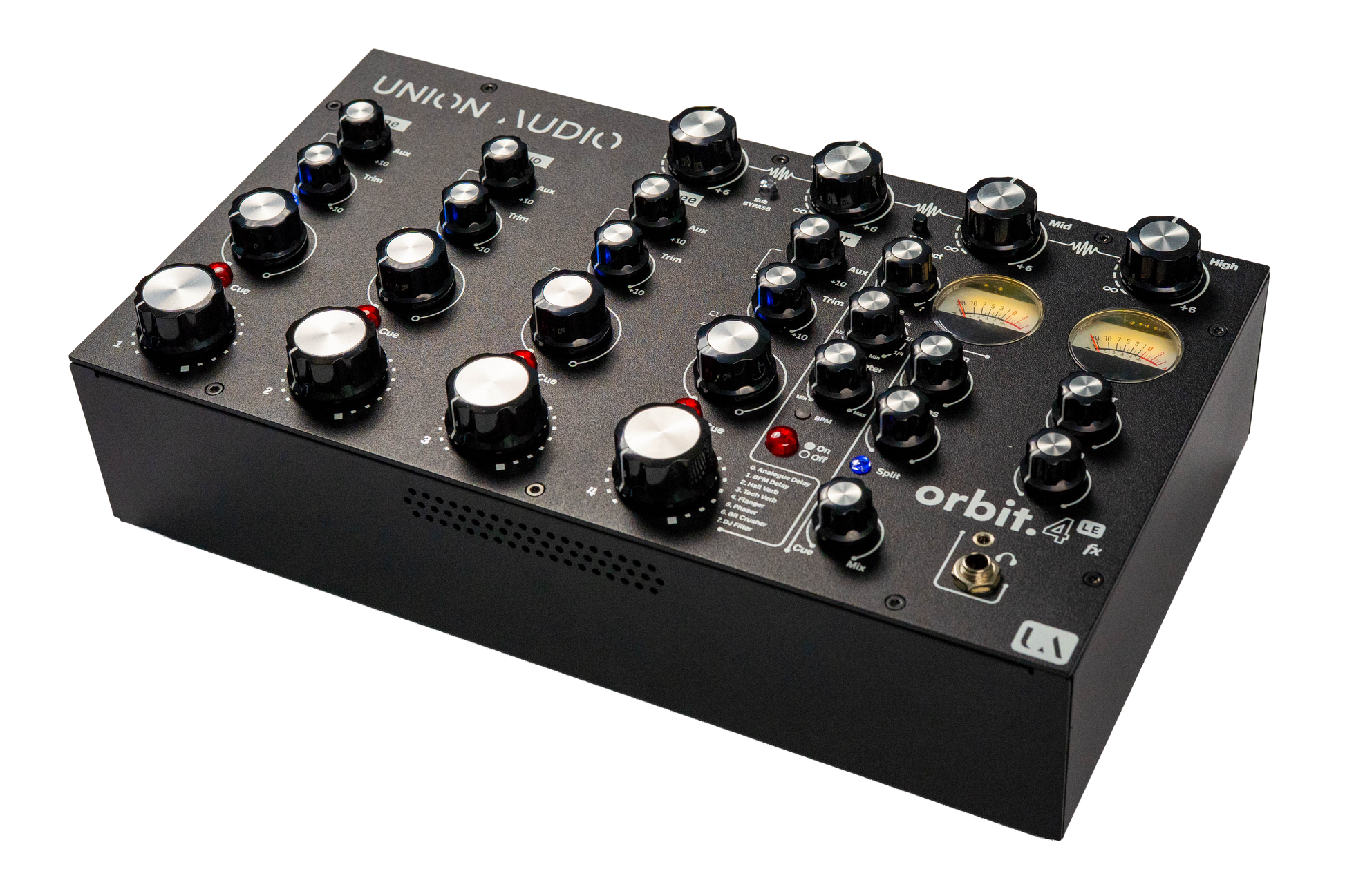

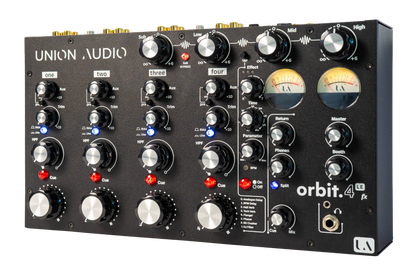

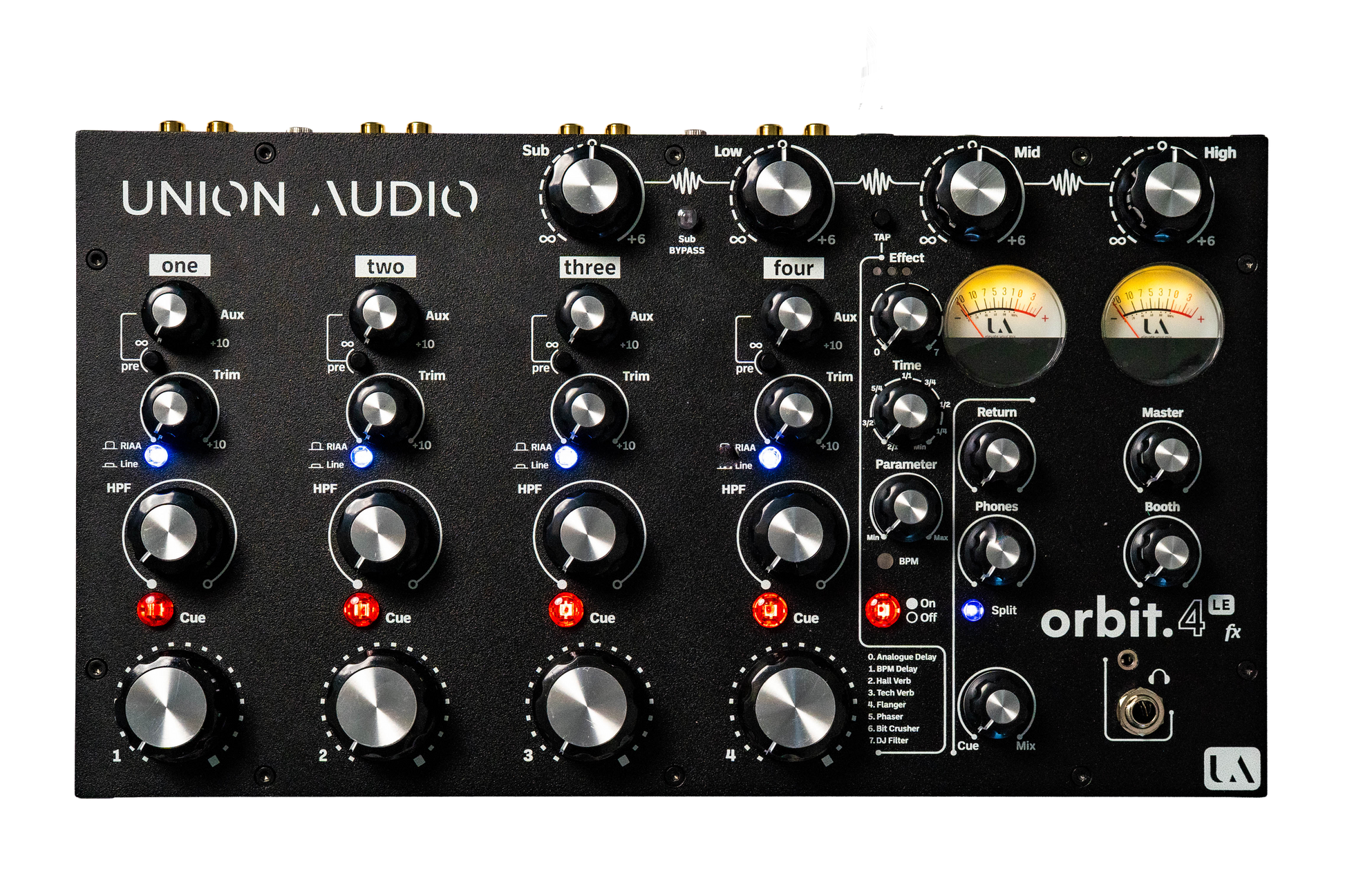

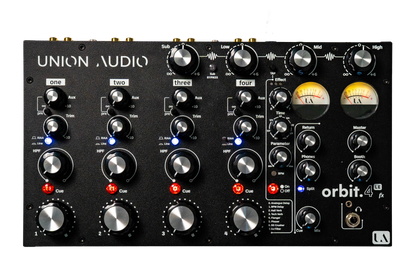

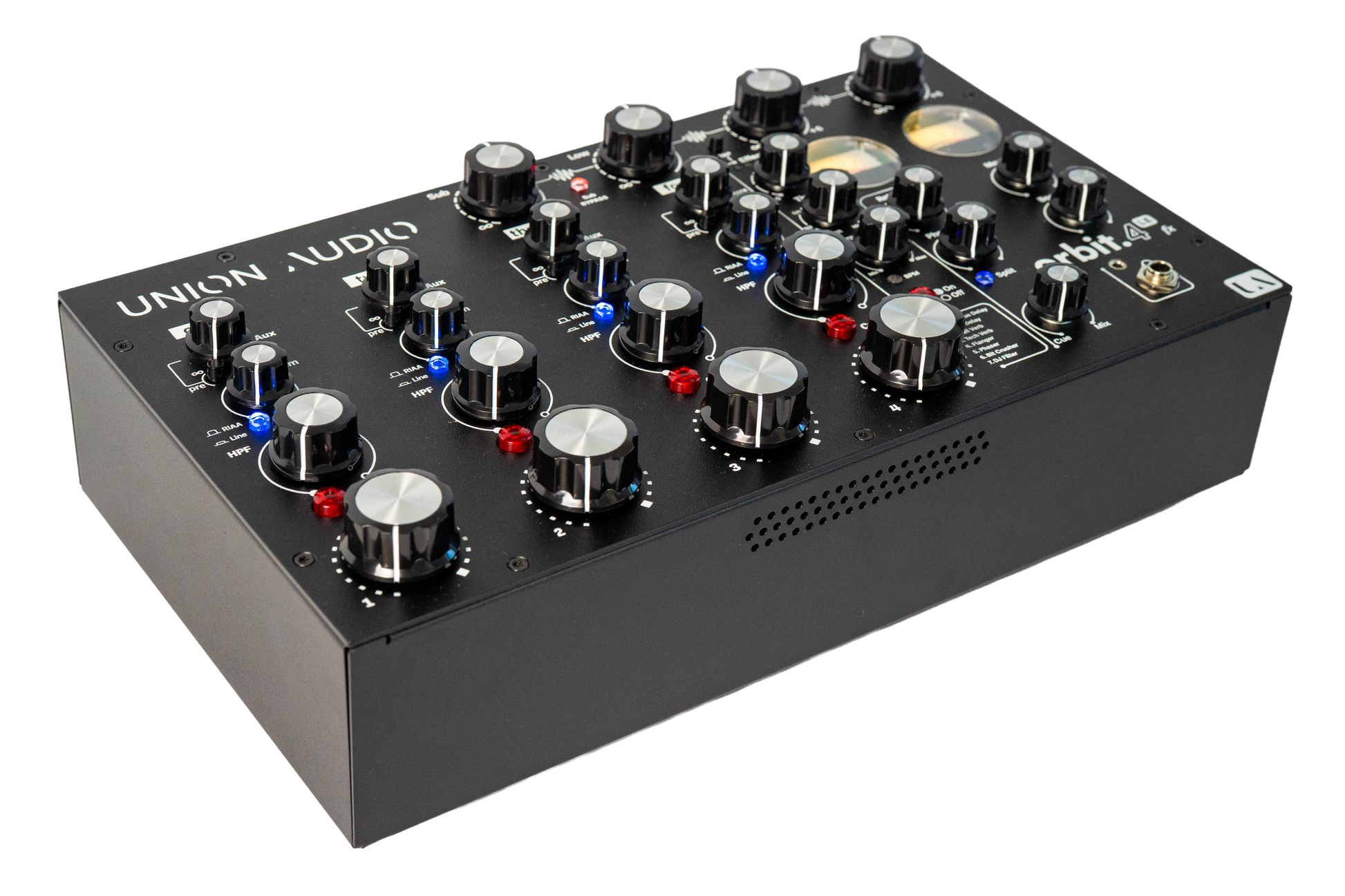

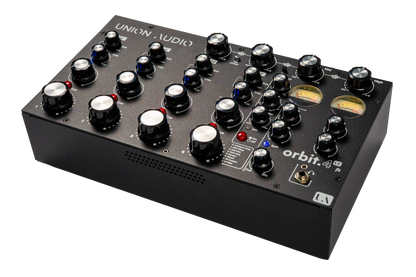

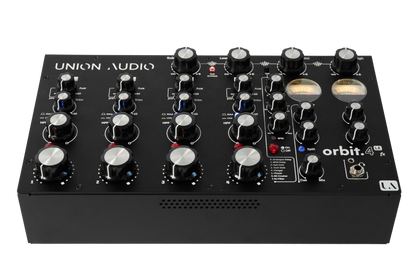

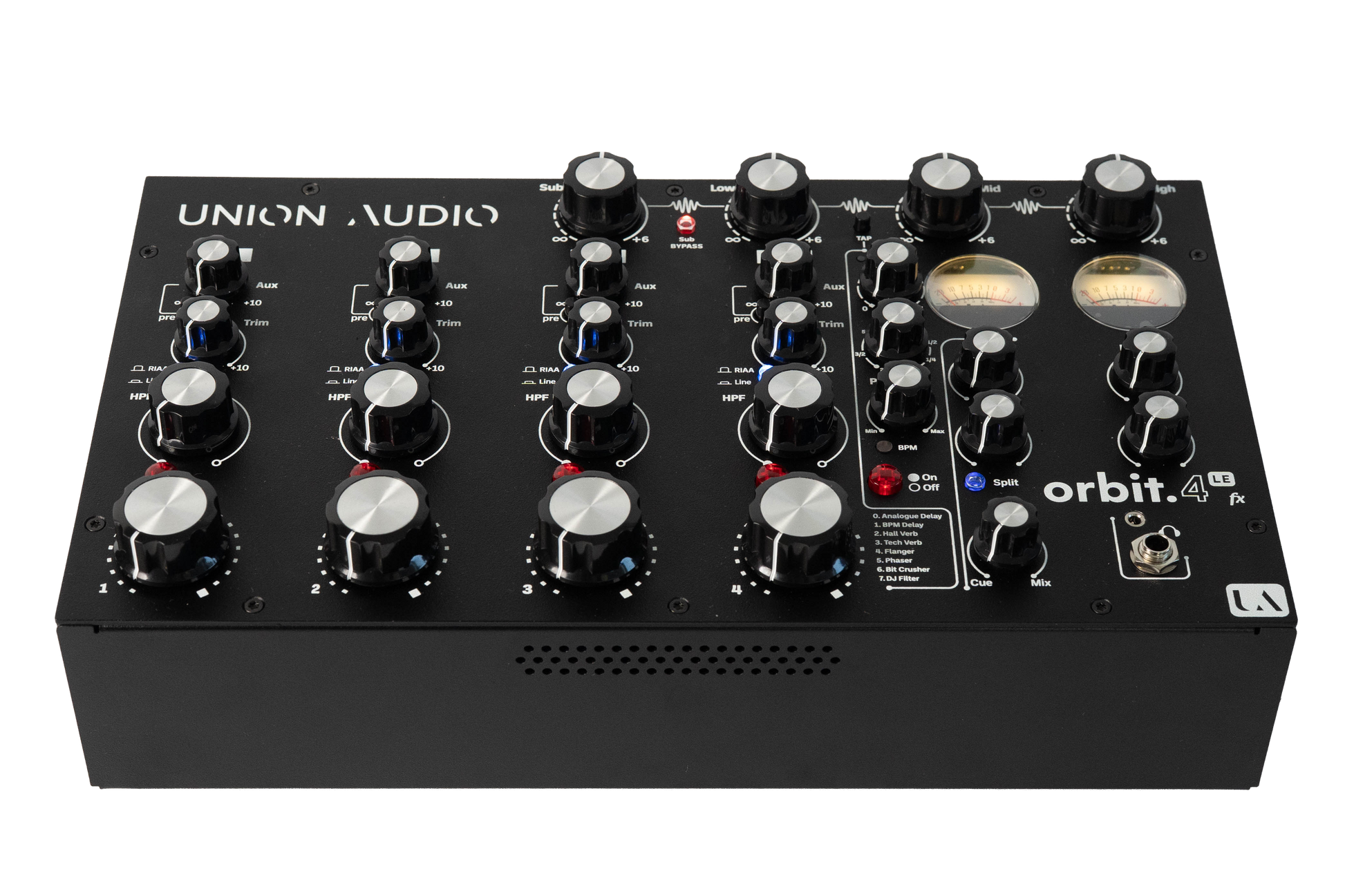

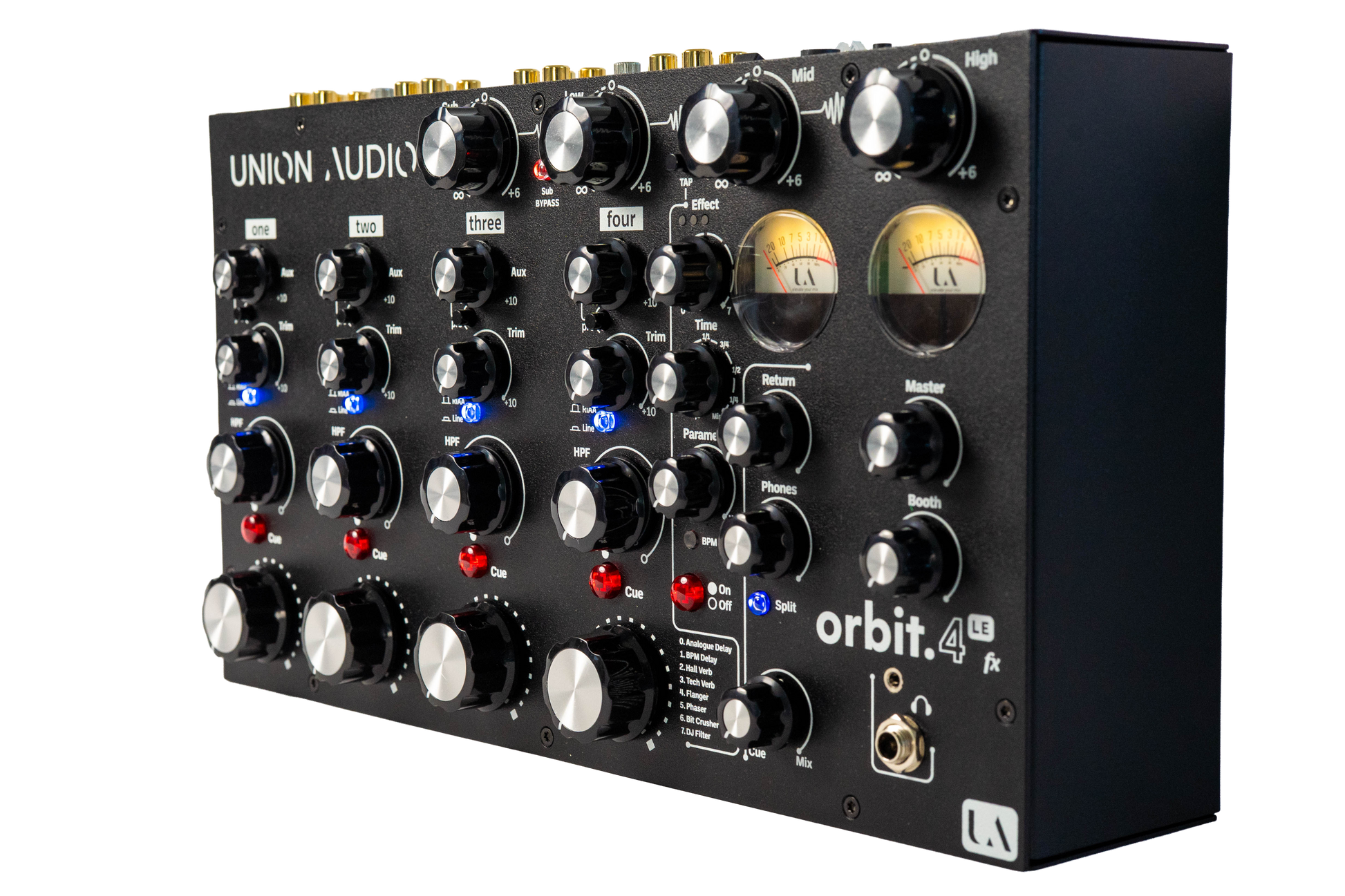

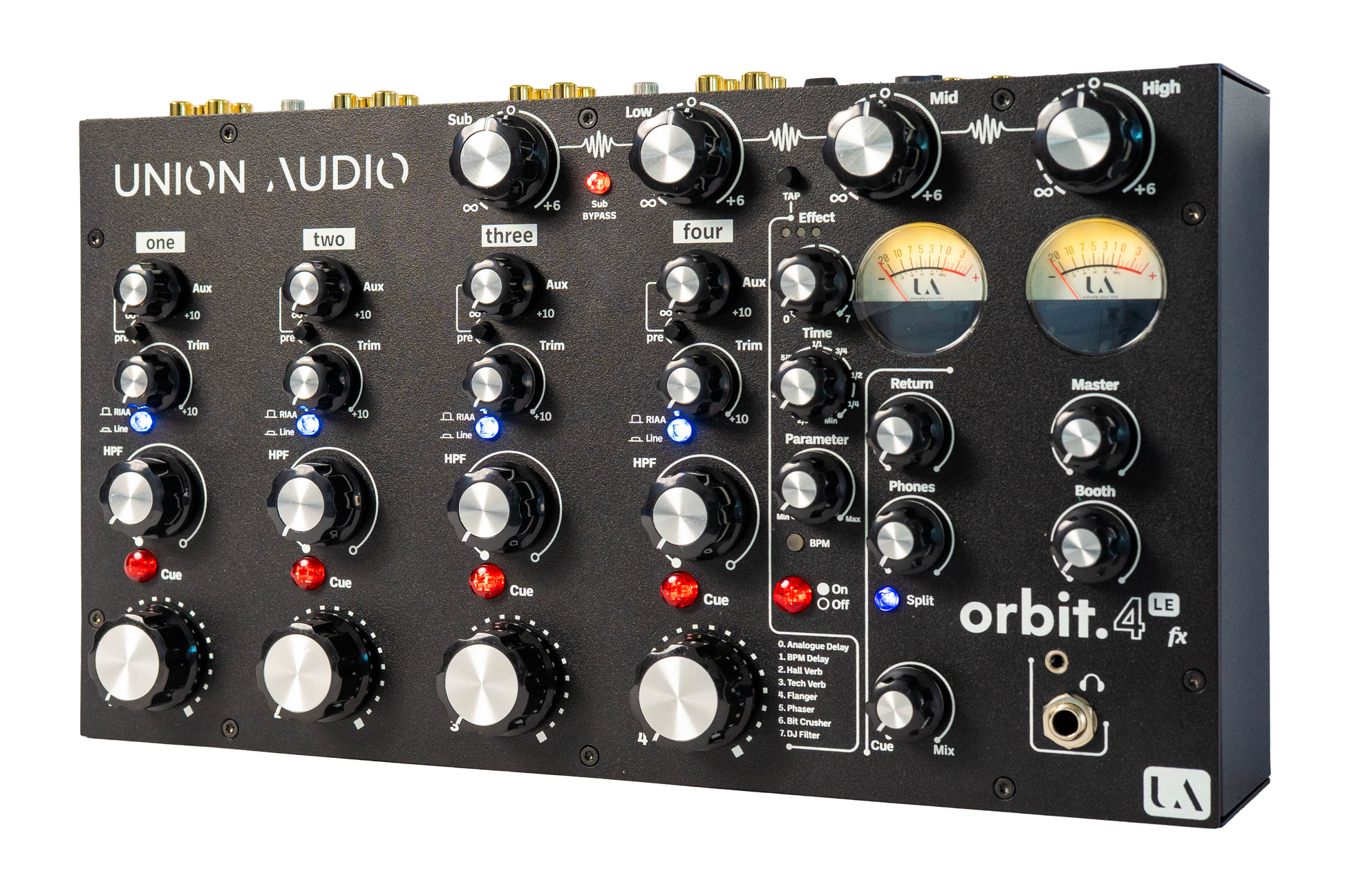

orbit.4 LE fx

Overview

This exceptional four-channel analogue DJ mixer integrates a versatile FX unit and switchable 4 band isolator, offering DJs an expanded toolkit for creative expression.

The Orbit.4 LE FX combines superior audio performance with innovative effects, making it the perfect choice for discerning DJs who seek both classic analogue warmth and modern digital versatility.



Product Description

The Union Audio Orbit.4 LE FX Mixer is designed to deliver an unparalleled DJing experience featuring four fully independent channels, each equipped with premium phono and line inputs, allowing smooth transitions between various audio sources.



The Orbit.4 LE FX retains the hallmark analogue warmth and precision of all Union Audio mixers, with carefully selected components ensuring pristine sound reproduction. The ergonomic layout, featuring smooth rotary faders and precise EQ controls, allows for intuitive and fluid operation, making it easy to shape and manipulate your sound.



Unique to the orbit LE fx range is the integrated FX unit, with eight carefully chosen effects, including delays, reverbs, phaser, flanger, bit-crusher, and resonant filters.

Delay 2 has automatic BPM detection, or beat timing can be overridden by a tap tempo button.

An On/Off push-button seamlessly activates the effects, and can be either latching or momentary, for maximum creativity.

In addition, the mixer can also be connected to an external FX unit for even greater audio manipulation, with the choice of running both internal and external effects simultaneously.



Additional Highlights

Classic Analogue Warmth: Experience the rich, warm sound of high-quality analogue circuitry, perfect for vinyl enthusiasts and digital DJs alike.

Integrated FX Unit: Enhance your mixes with a variety of built-in effects, easily controlled via intuitive layout.

Four Band Isolator: a 4/3 band isolator with full cut to +6db of boost per band. Switchable between 3 & 4 band and with crossovers between 110Hz and 3KHz giving many options to shape the sound of your mix.

Versatile Connectivity: With dual phono/line inputs per channel, the orbit.4 LE fx Mixer accommodates a wide range of audio sources.

Technical Specifications

Distortion plus Noise (THD+N) un-weighted

0dBu, 20Hz to 20kHz, Line In to Mix Out +4dBu

0.005%

Frequency Response

Line in to Mix Out	+/-2dB 20Hz - 100kHz
RIAA Accuracy	+/-1dB 20Hz to 20kHz

Shutoff and Crosstalk

Fader Shutoff	> -80dB
L/R Crosstalk Line in to Mix Out 1kHz	<-75dB

Noise 22Hz to 22kHz Un-Weighted

Residual Mix Output noise	<-90dBu
Line In to Mix Out Unity	<-85dBu
Maximum Output Level Mix Out 0.5% THD	+27dBu
Dynamic Range	117dB

EQ and Filter Frequency

Channel High-Pass Filter Fully Clockwise	-3dB/1500Hz
Master 3 Band Isolator	200Hz, 800Hz, 2000Hz

Headphone Amplifier

Maximum output level

750mW RMS - 33 ohms

Power Supply

Type	External SMPSU
Mains Voltage range	90-260VAC
Output	18V DC 30W
Efficiency	LEVEL VI

Dimensions

Dimensions – LE4 fx Mixer

Height	195mm
Width	350mm
Depth	88mm
Weight	3.75kg

Packed Dimensions – LE4 fx Mixer

Size L × W × H	48cm × 28cm × 20cm
Weight	4.75kg (10.5lb)
