two.valve rotary Mixer

Overview

The Union Audio two.valve Mixer, a premium two-channel analogue DJ mixer designed for audio purists and professionals who seek the distinctive warmth and character of valve (tube) technology. The two.valve Mixer combines exceptional sound quality, meticulous craftsmanship, and the unique sonic qualities of valve circuits to deliver an unmatched audio experience.

Product Description

The Union Audio two.valve Mixer is engineered to provide a superior DJing experience, merging the timeless appeal of valve warmth with modern precision. Each of its two channels is equipped with high-quality phono and line inputs, ensuring seamless integration with various audio sources. The mixer's layout is thoughtfully designed, featuring smooth rotary faders, an Innofader crossfader, precise EQ controls, and an intuitive interface that allows DJs to craft dynamic and engaging mixes effortlessly.

At the heart of the two.valve Mixer is its valve (tube) circuitry, which imparts a distinctive warmth and richness to the sound, enhancing the musicality of your mixes. Built with carefully selected components, this mixer ensures pristine sound reproduction and reliable performance. The robust metal chassis provides durability, while the high-grade internals deliver the rich, warm tones that analogue enthusiasts cherish.

Additional Highlights

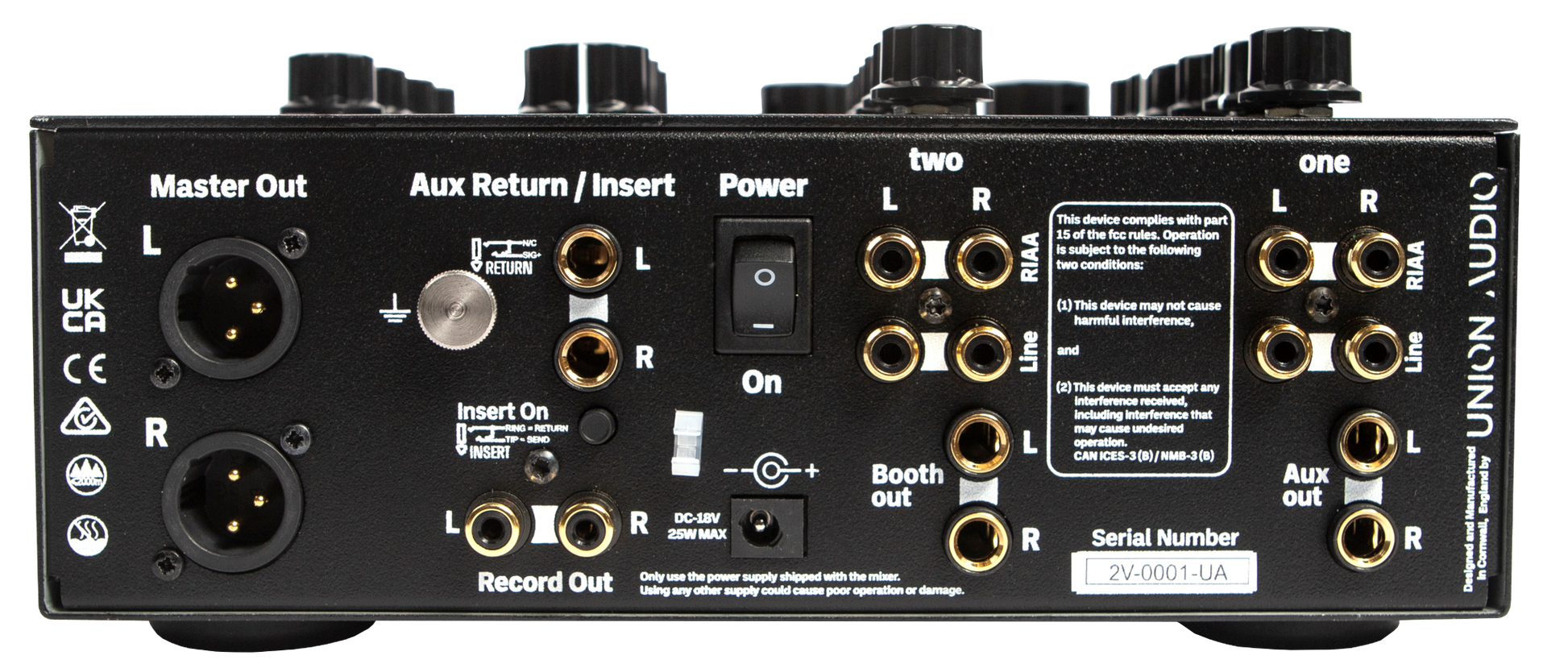

Versatile Connectivity: With dual phono/line inputs on each channel, the two.valve accommodates a wide range of audio sources, providing flexibility in any setup.

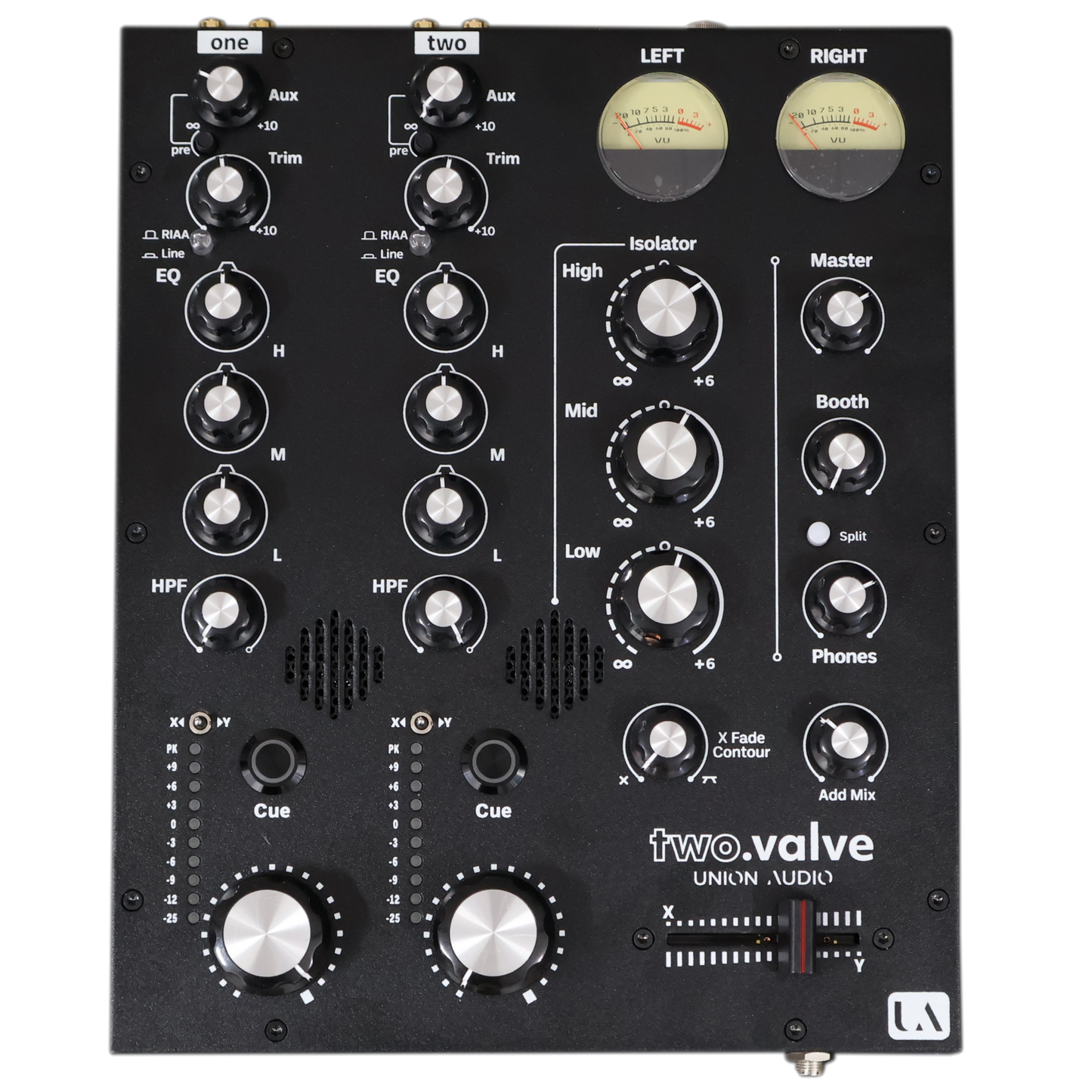

Intuitive Layout: Designed with DJs in mind, the mixer features a user-friendly interface that ensures quick and easy operation, allowing for seamless transitions and creative mixing.

Professional Performance: Delivering consistent, high-quality sound, the two.valve is perfect for professional DJs looking to enhance their performances with superior audio equipment.



Experience the Union Audio two.valve Mixer and discover the perfect blend of valve warmth, precision engineering, and intuitive control. Elevate your DJ sets with this exceptional piece of equipment, crafted to meet the demands of the modern DJ

Tech Specs

Distortion plus Noise (THD+N) un-weighted

0dBu, 20Hz to 20kHz, Line In to Mix Out +4dBu

0.1% Typically

Frequency Response

Line in to Mix Out	+/-1dB 20Hz - 50kHz
RIAA Accuracy	+/-1dB 20Hz to 20kHz

Shutoff and Crosstalk

Fader Shutoff	> -80dB
L/R Crosstalk Line in to Mix Out 1kHz	<-75dB

Noise 22Hz to 22kHz Un-Weighted

Residual Output noise	<-92dBu
Line In to Mix Out Unity	<-85dBu

Maximum Output Level Mix Out

0.5% THD

+27dBu

Dynamic Range

Dynamic Range

116dB

EQ and Filter Frequency

Channel High-Pass Filter Fully Clockwise	-3dB/1500Hz
Master 3 Band Isolator	200Hz, 800Hz, 2000Hz

Headphone Amplifier

Maximum output level

750mW RMS - 33 ohms

Power Supply

Type	External SMPSU
Mains Voltage range	90-260VAC
Output	18V DC 30-40W
Efficiency	LEVEL VI

Dimensions

Dimensions - two.valve

Mixer Height	100mm (inc. knobs)
Mixer Width	230mm
Mixer Depth	283mm
Weight	3.5kg

Packed Dimensions - two.valve

Size L x W x H	37cm x 37cm x 20cm
Weight	5kg (11lb)

User Guide



two.valve User Guide
