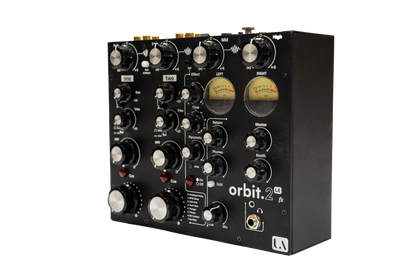

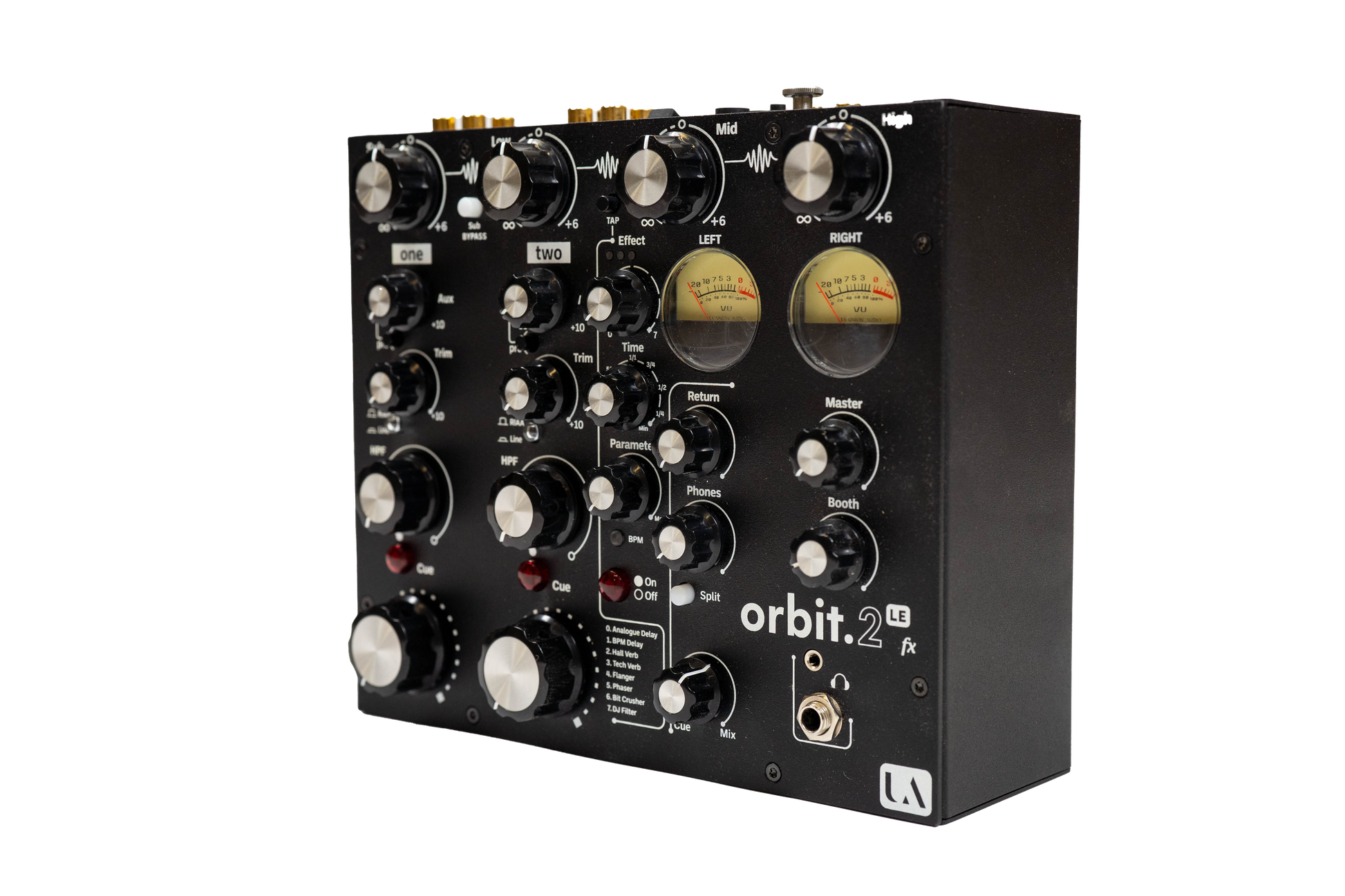

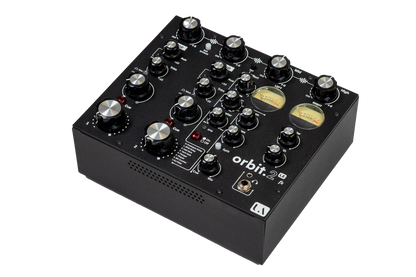

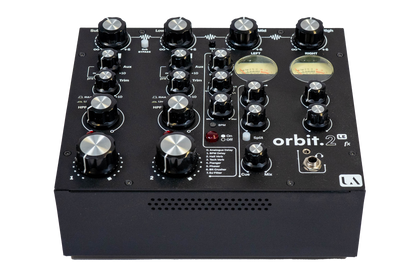

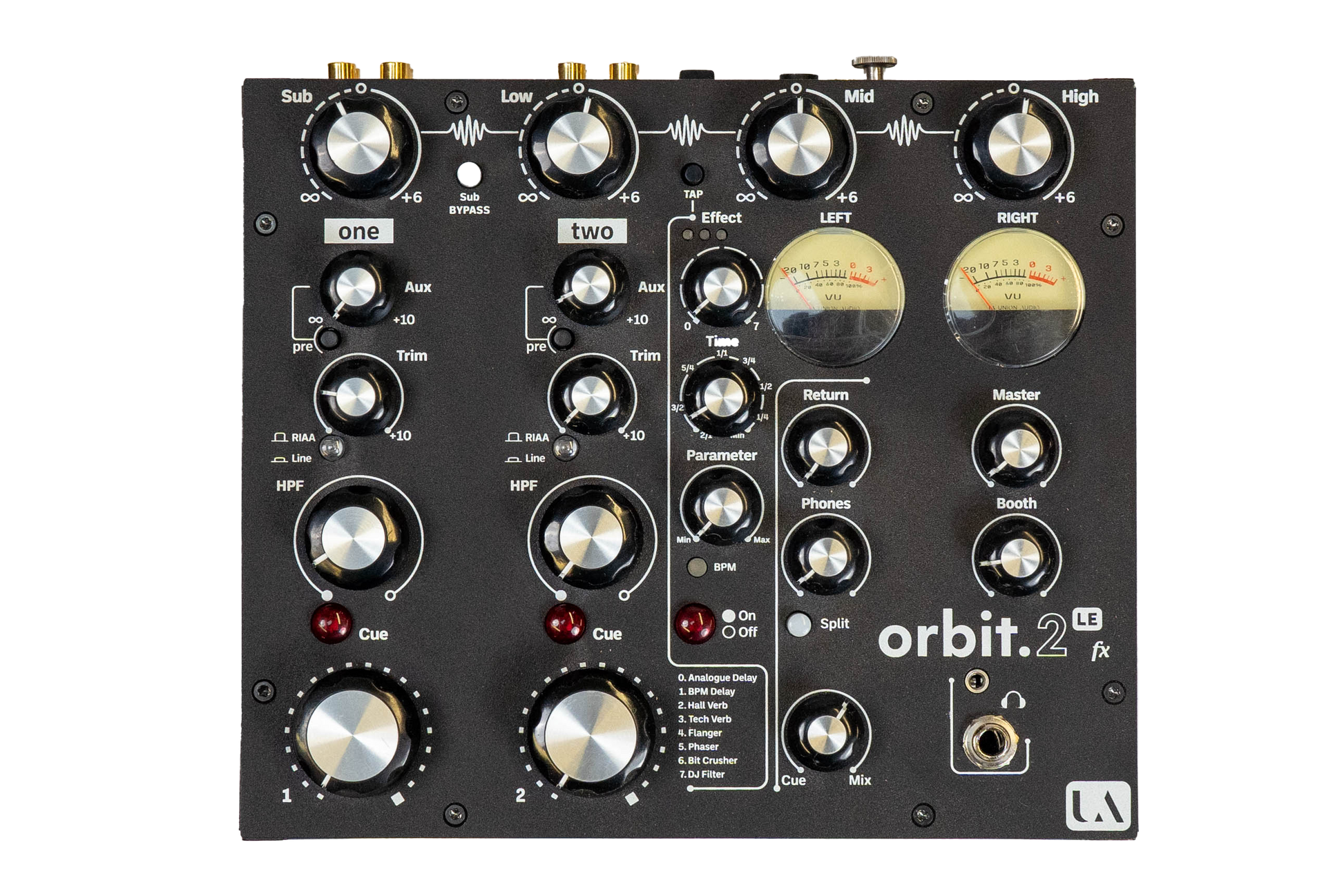

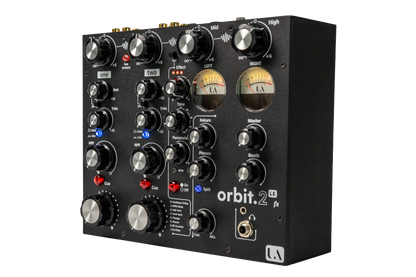

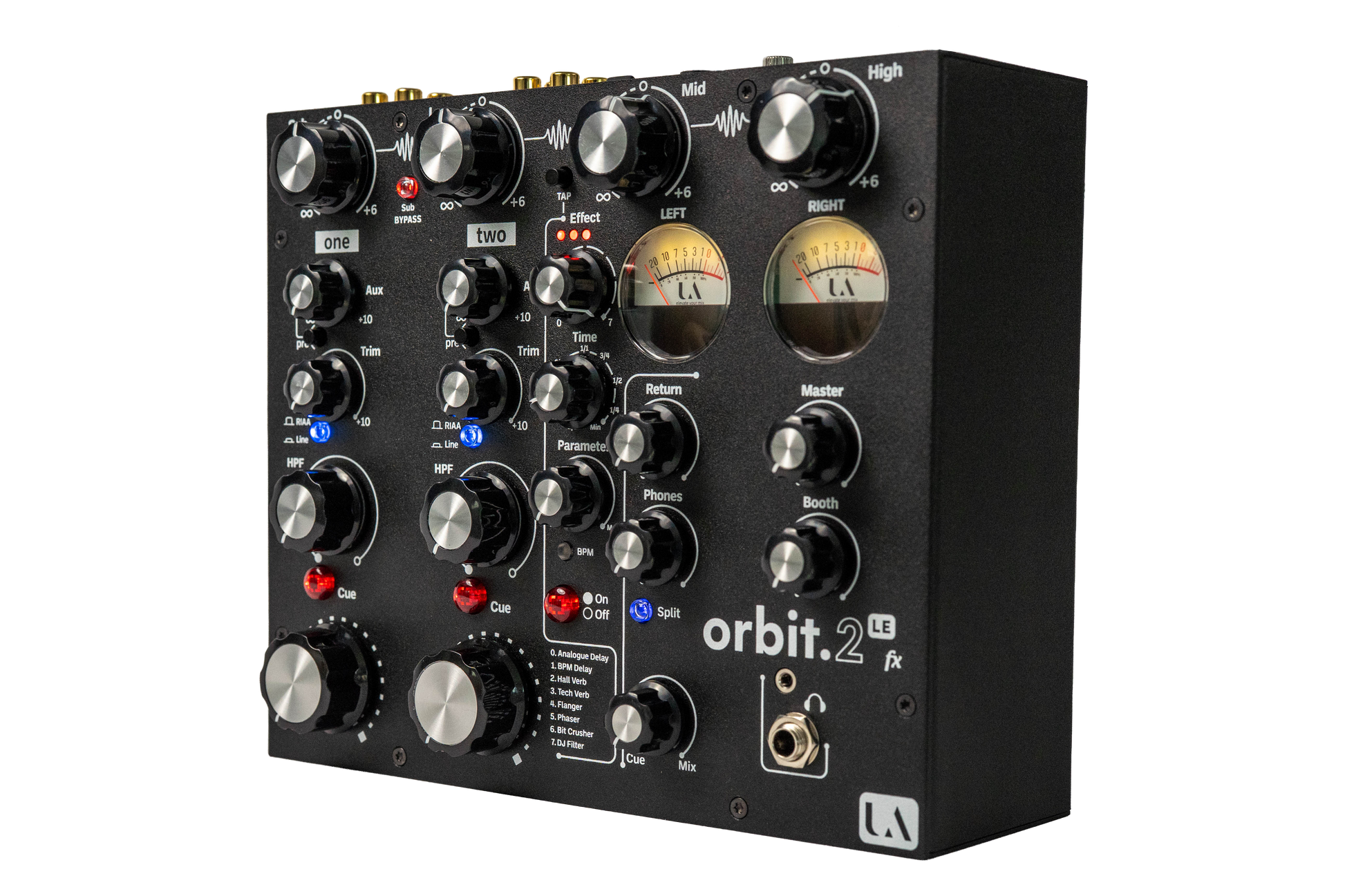

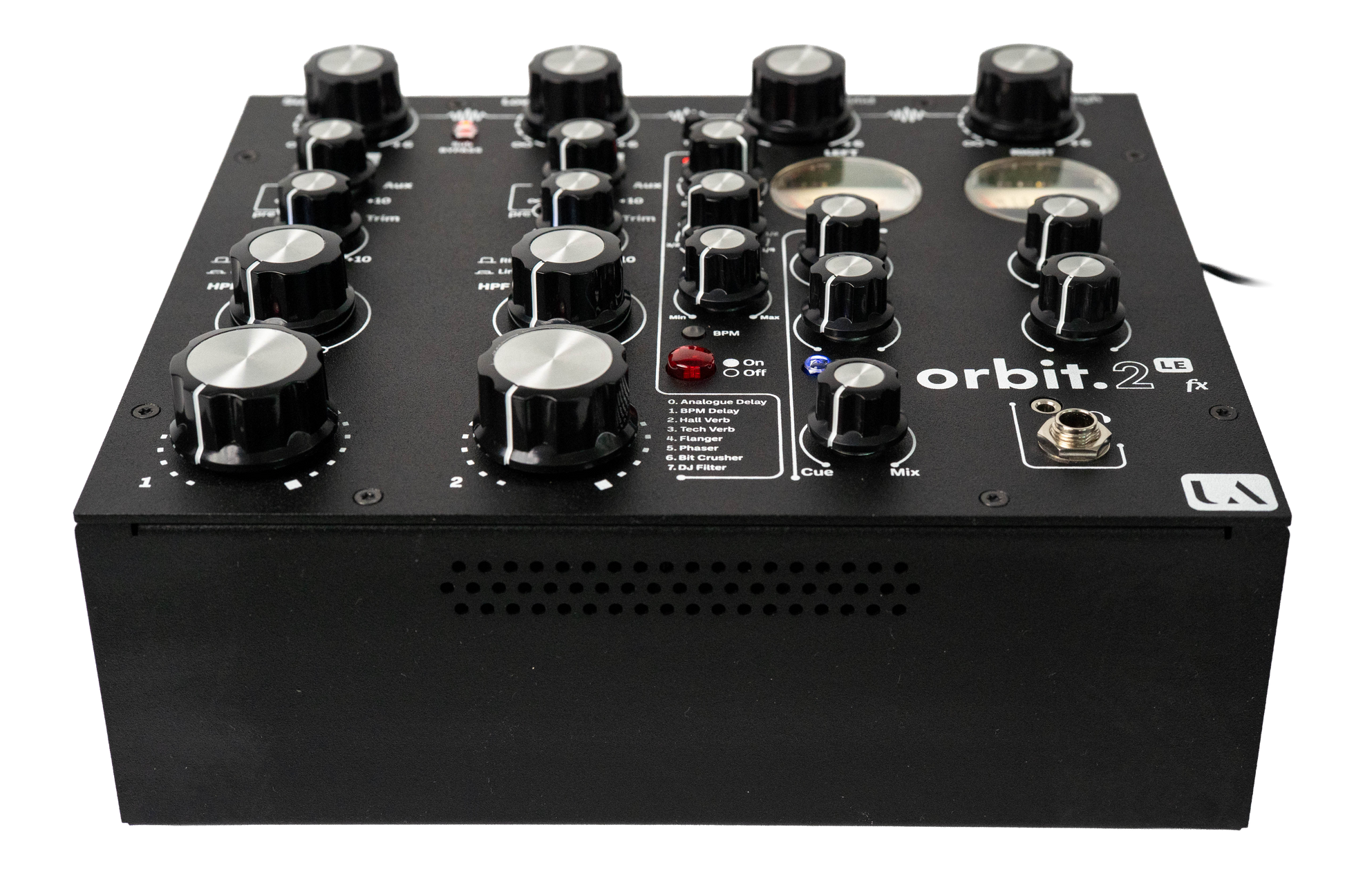

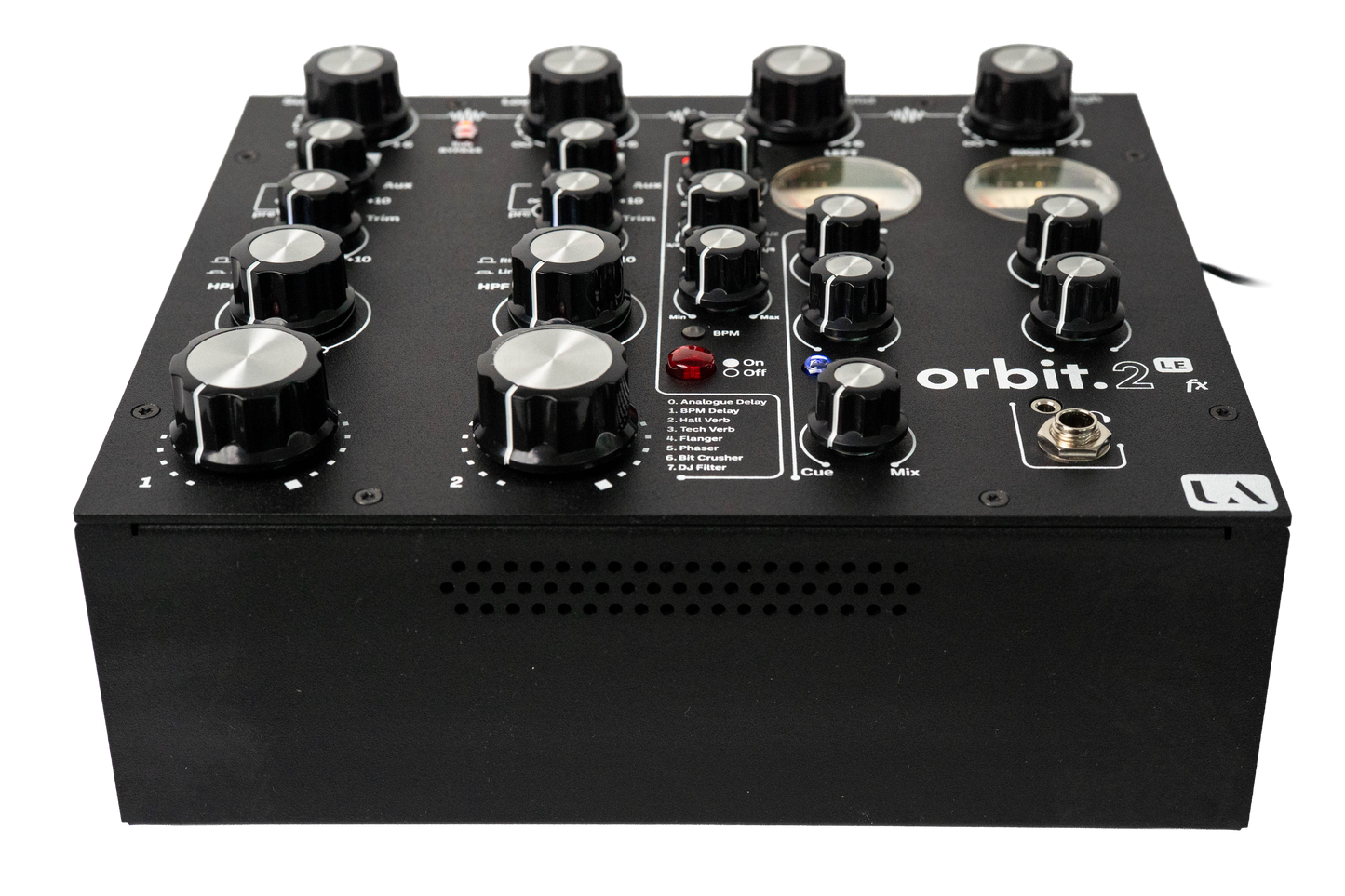

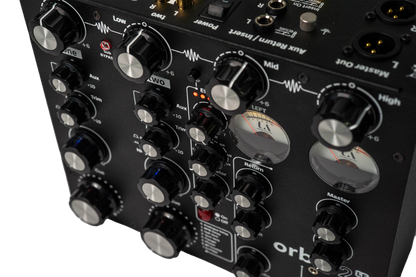

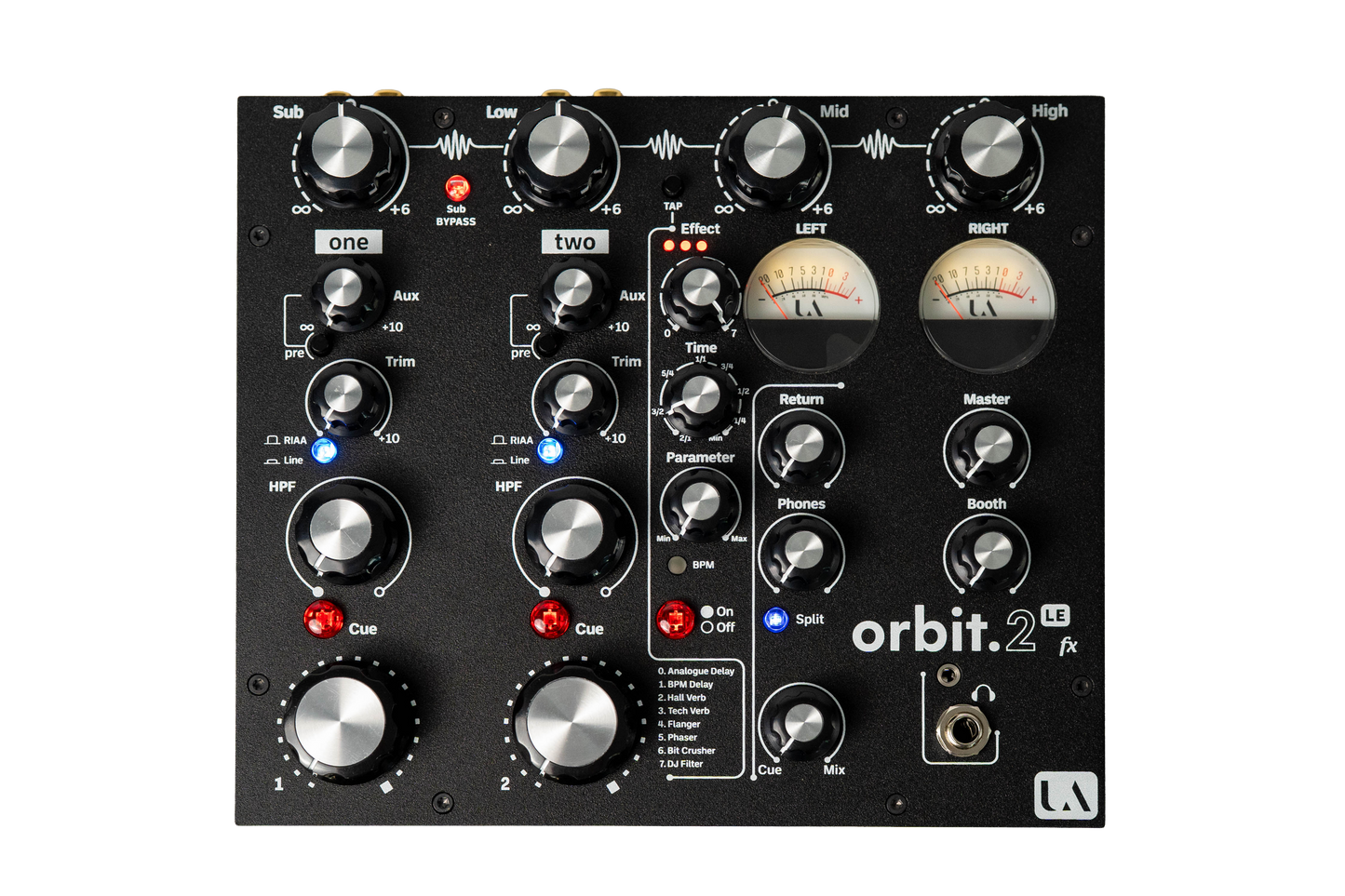

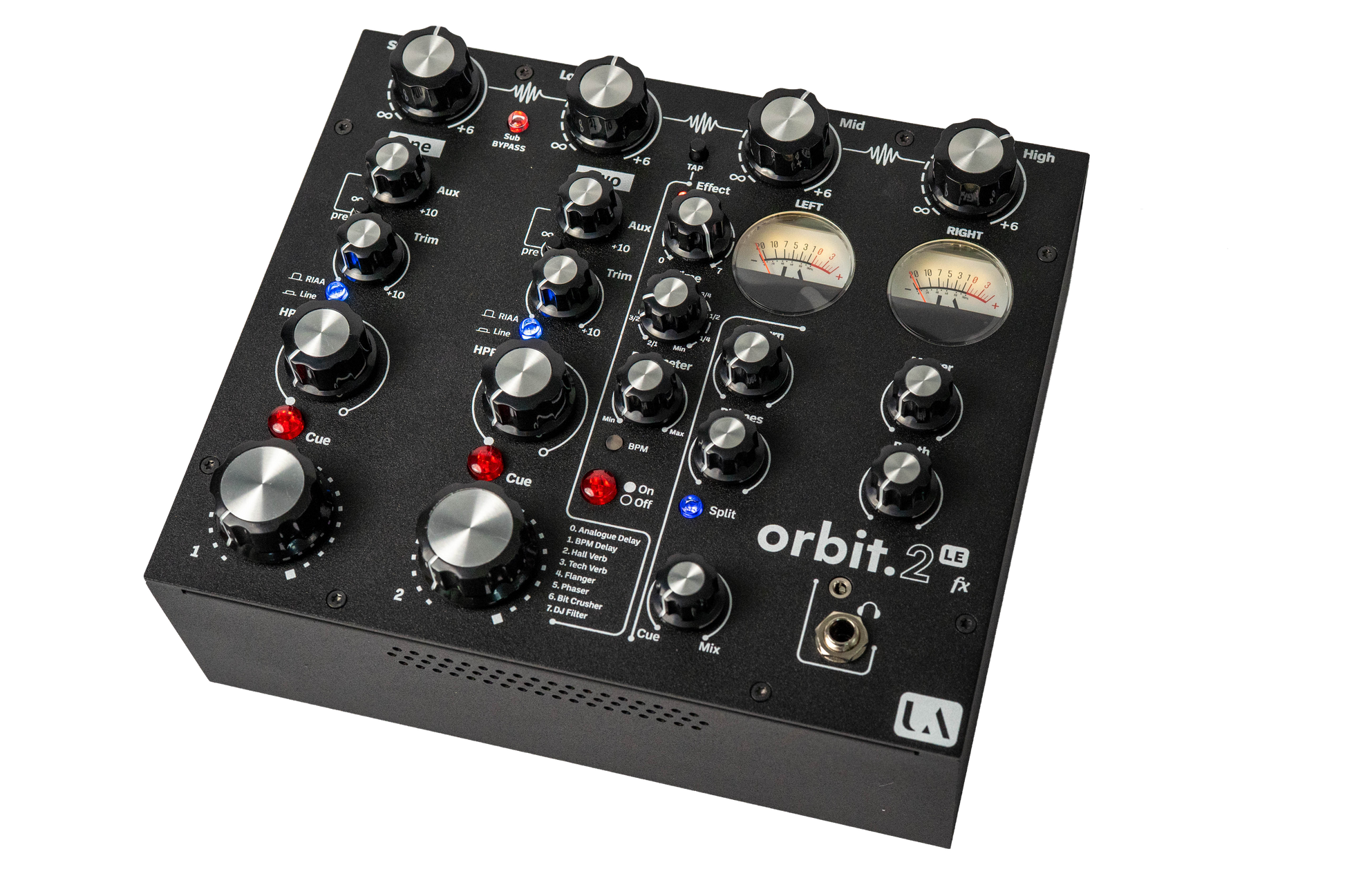

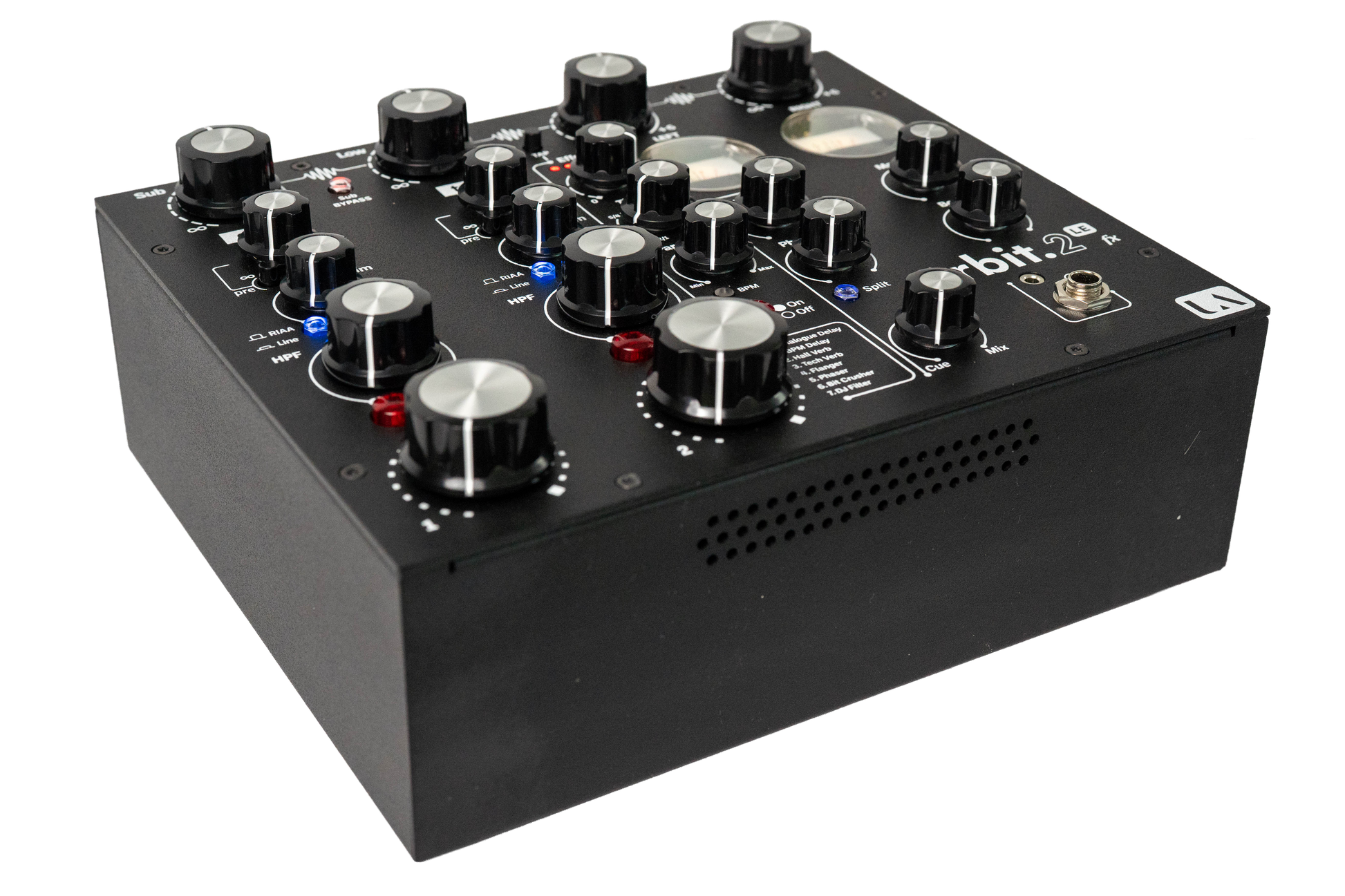

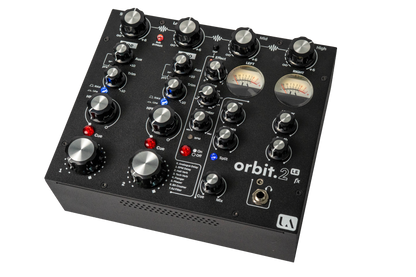

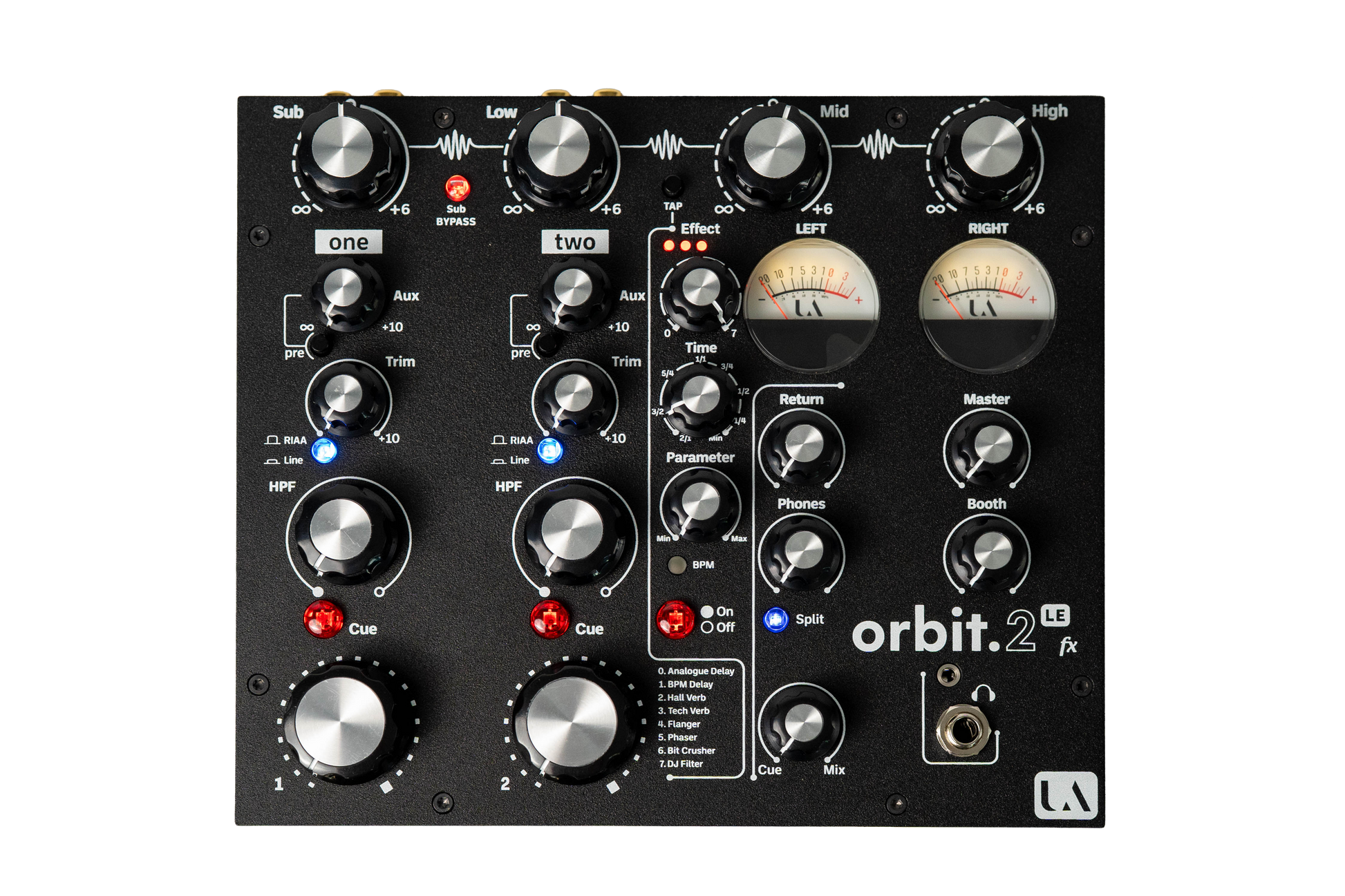

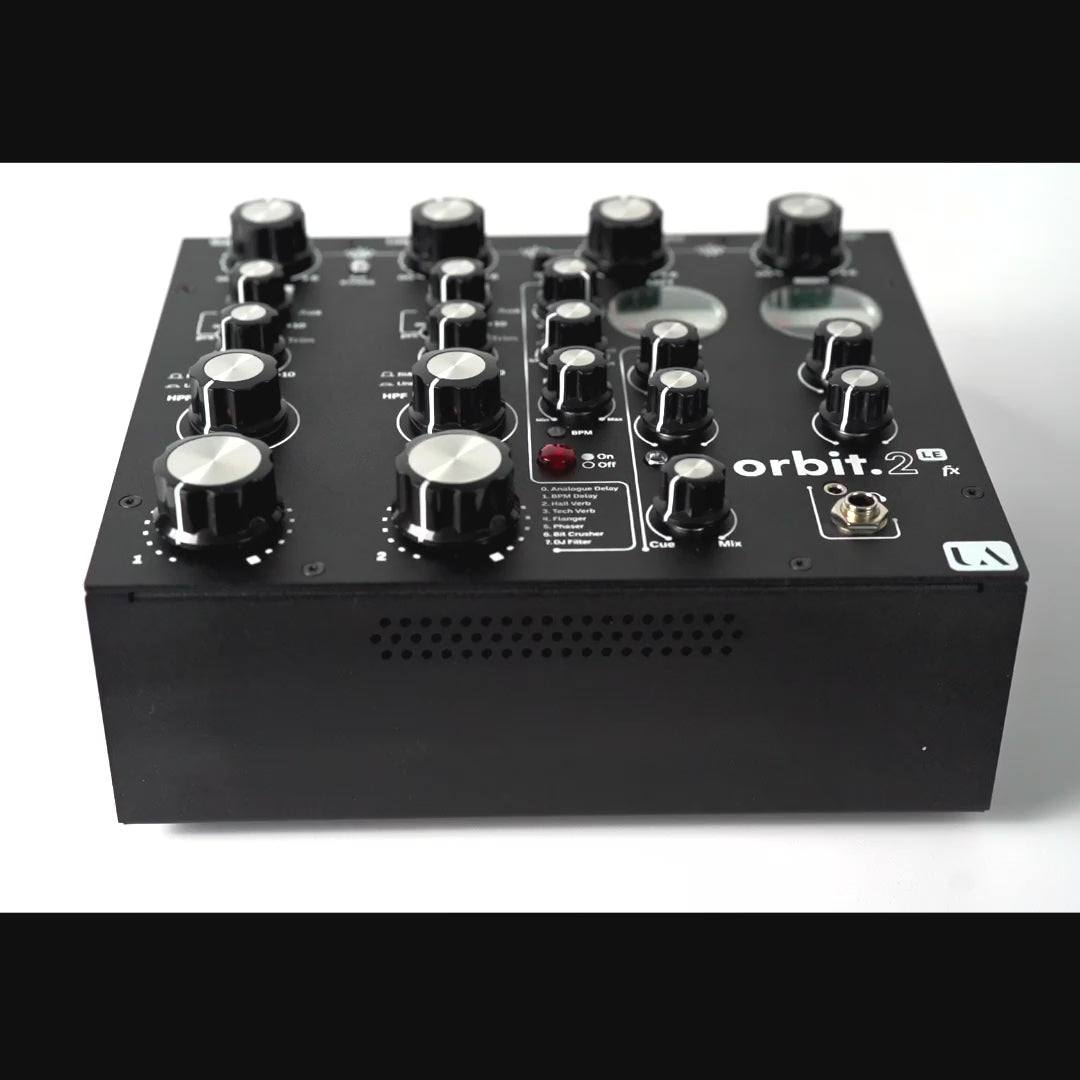

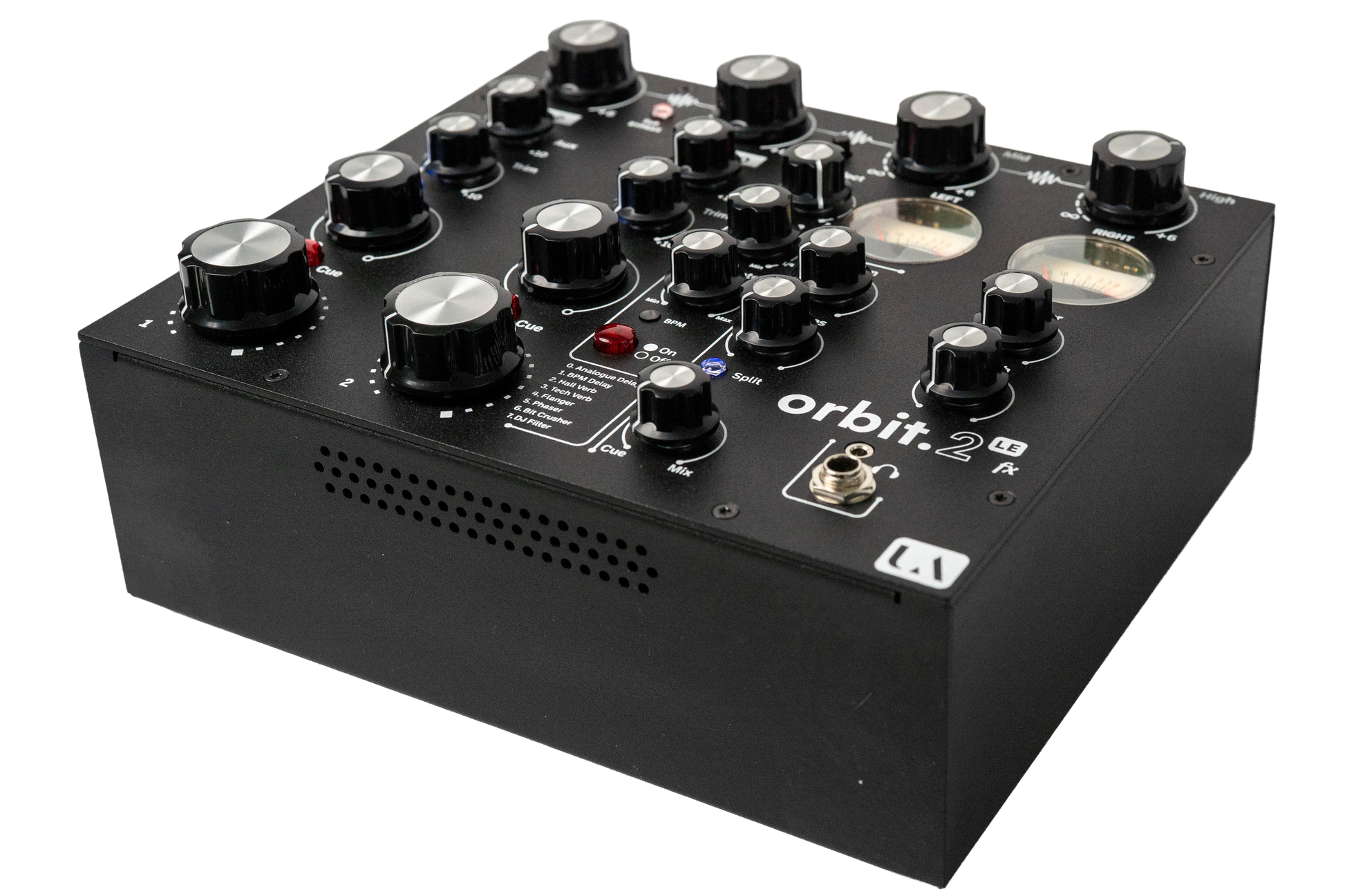

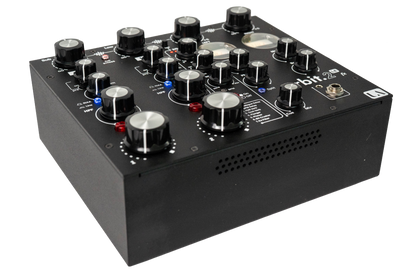

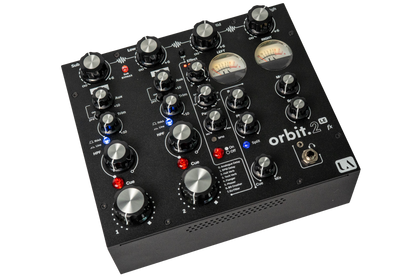

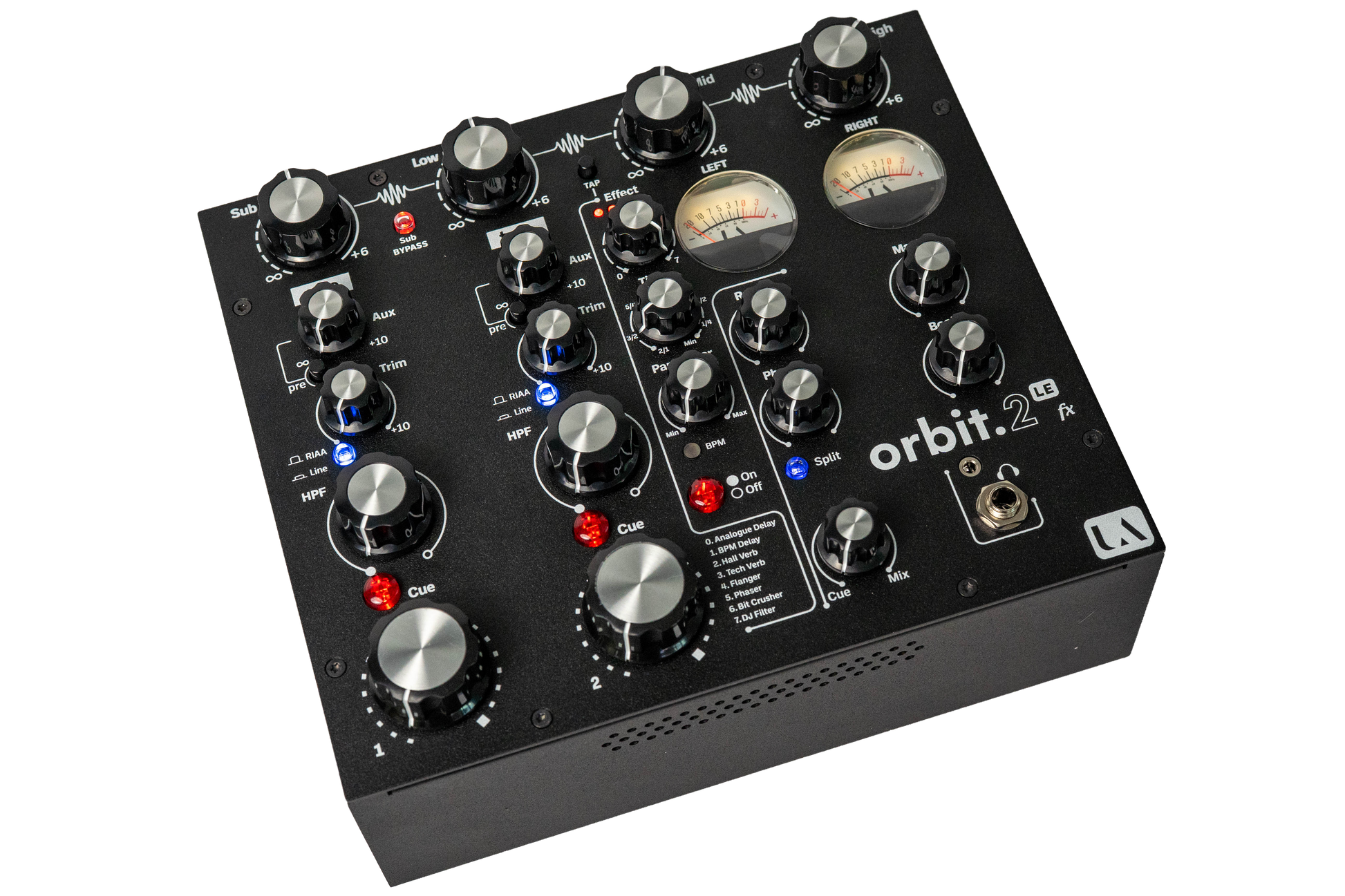

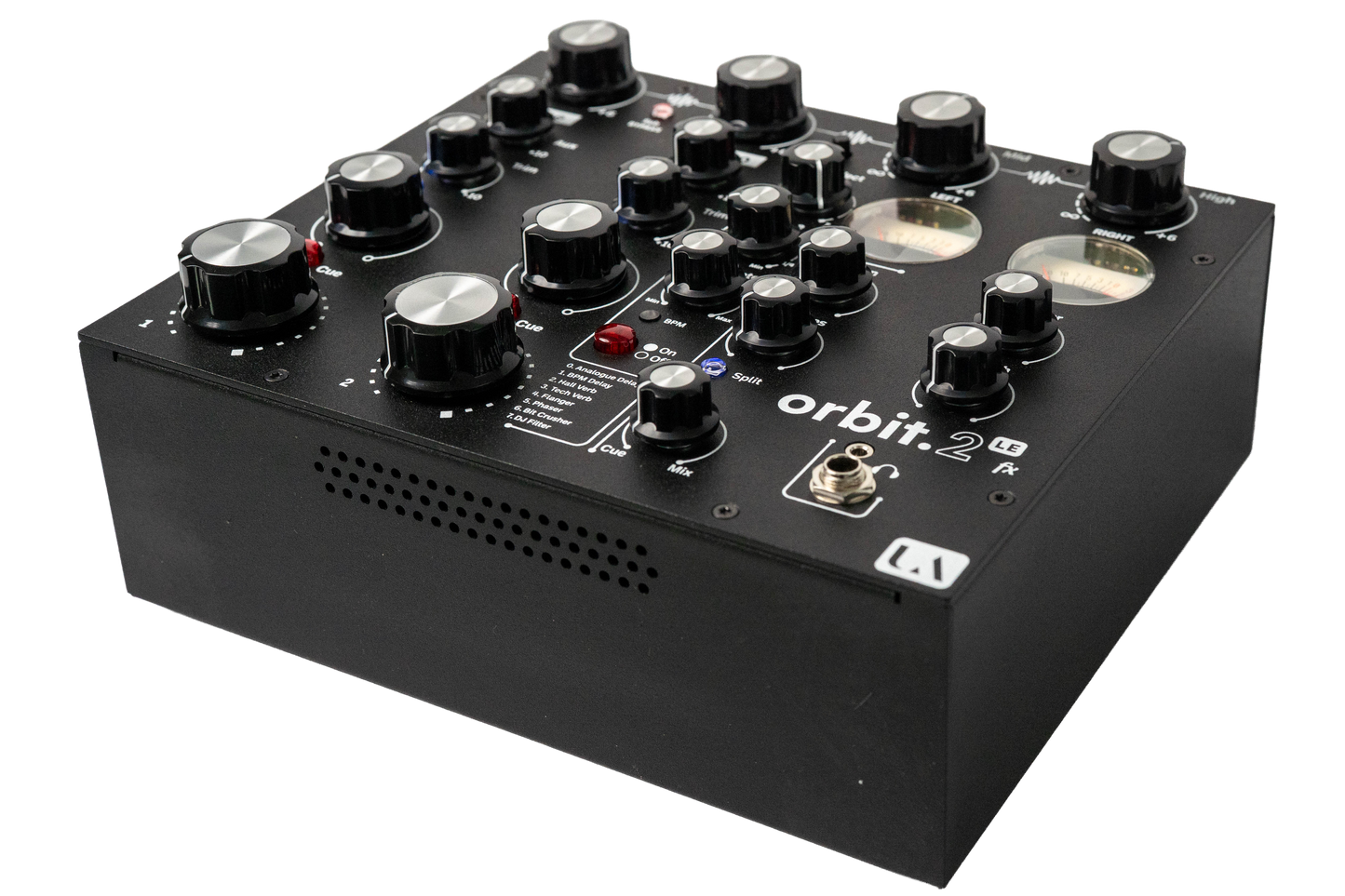

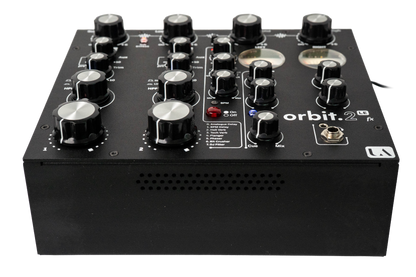

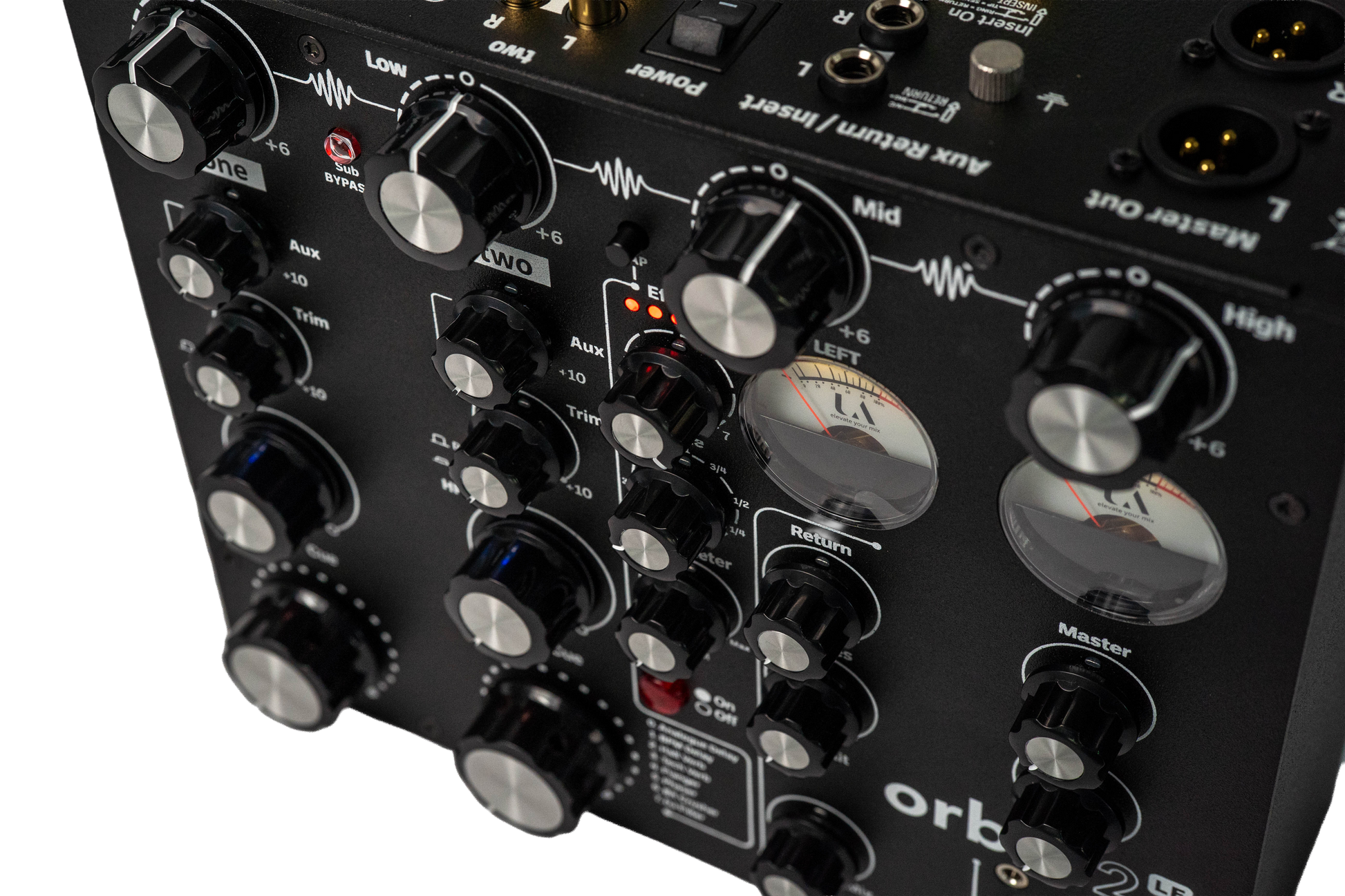

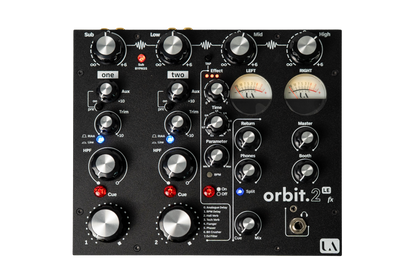

orbit.2 LE fx

Overview

This high-performance, two-channel analogue DJ mixer combines exceptional sound quality and tactile precision, uniquely featuring an integrated  DSP FX unit and a powerful 4 band isolator.

Offering unparalleled creative potential in a single, elegantly crafted device, the orbit.2 LE fx Mixer is designed for those who demand the highest standards in audio performance and creativity.

Product Description

The Union Audio orbit.2 LE fx Mixer is engineered to deliver a superior DJing experience, blending the best of analogue warmth with cutting-edge digital effects.

This mixer features two fully independent channels, each equipped with high-quality phono and line inputs, variable Q High-Pass filter and precise Alps rotary fader, allowing seamless transitions between vinyl and digital sources.

Unique to the orbit LE fx range is the integrated FX unit, with eight carefully chosen effects, including delays, reverbs, phaser, flanger, bit-crusher, and resonant filters.

Delay 2 has automatic BPM detection, or beat timing can be overridden by a tap tempo button.

An On/Off push-button seamlessly activates the effects, and can be either latching or momentary, for maximum creativity.

In addition, the mixer can also be connected to an external FX unit for even greater audio manipulation, with the choice of running both internal and external effects simultaneously.

Additional Highlights

Classic Analogue Warmth: Experience the rich, warm sound of high-quality analogue circuitry, perfect for vinyl enthusiasts and digital DJs alike.

Integrated FX Unit: Enhance your mixes with a variety of built-in effects, easily controlled via intuitive layout.

Four Band Isolator: a 4 band isolator with full cut to +6db of boost per band. Switchable between 3 & 4 band and with crossovers between 110Hz and 3KHz giving many options to shape the sound of your mix.

Versatile Connectivity: With dual phono/line inputs per channel, the orbit.2 LE fx Mixer accommodates a wide range of audio sources.

Intuitive Layout: Designed with the DJ in mind, the mixer features a user-friendly layout that ensures quick and easy operation.

Professional Performance: Whether you're performing in a club, studio, or at home, the orbit.2 LE fx Mixer delivers consistent, professional-grade performance.

Technical Description

Distortion plus Noise (THD+N) un-weighted

0dBu, 20Hz to 20kHz, Line In to Mix Out +4dBu

0.005%

Frequency Response

Line in to Mix Out	+/-2dB 20Hz - 100kHz
RIAA Accuracy	+/-1dB 20Hz to 20kHz

Shutoff and Crosstalk

Fader Shutoff	> -80dB
L/R Crosstalk Line in to Mix Out 1kHz	<-75dB

Noise 22Hz to 22kHz Un-Weighted

Residual Mix Output noise	<-90dBu
Line In to Mix Out Unity	<-85dBu
Maximum Output Level Mix Out 0.5% THD	+27dBu
Dynamic Range	117dB

EQ and Filter Frequency

Channel High-Pass Filter Fully Clockwise	-3dB/1500Hz
Master 3 Band Isolator	200Hz, 800Hz, 2000Hz

Headphone Amplifier

Maximum output level

750mW RMS - 33 ohms

Power Supply

Type	External SMPSU
Mains Voltage range	90-260VAC
Output	18V DC 30W
Efficiency	LEVEL VI

Dimensions

Dimensions – LE 2 fx Mixer

Height	195mm
Width	230mm
Depth	88mm
Weight	2.75kg

Packed Dimensions – LE 2 fx Mixer

Size L × W × H	37cm × 28cm × 20cm
Weight	3.75kg (8.3lb)
