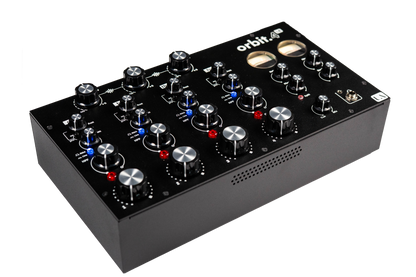

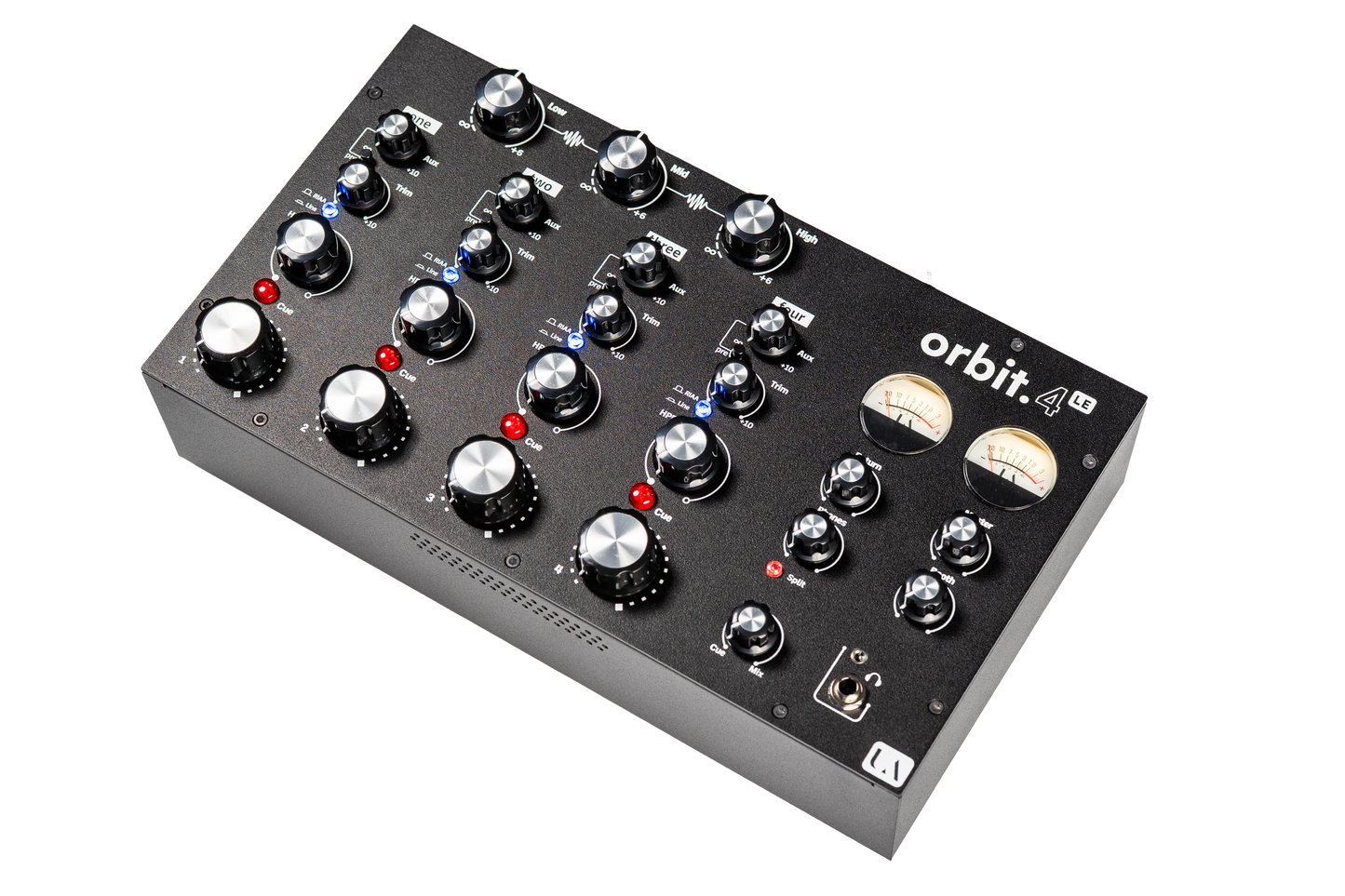

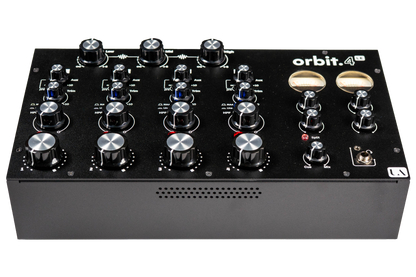

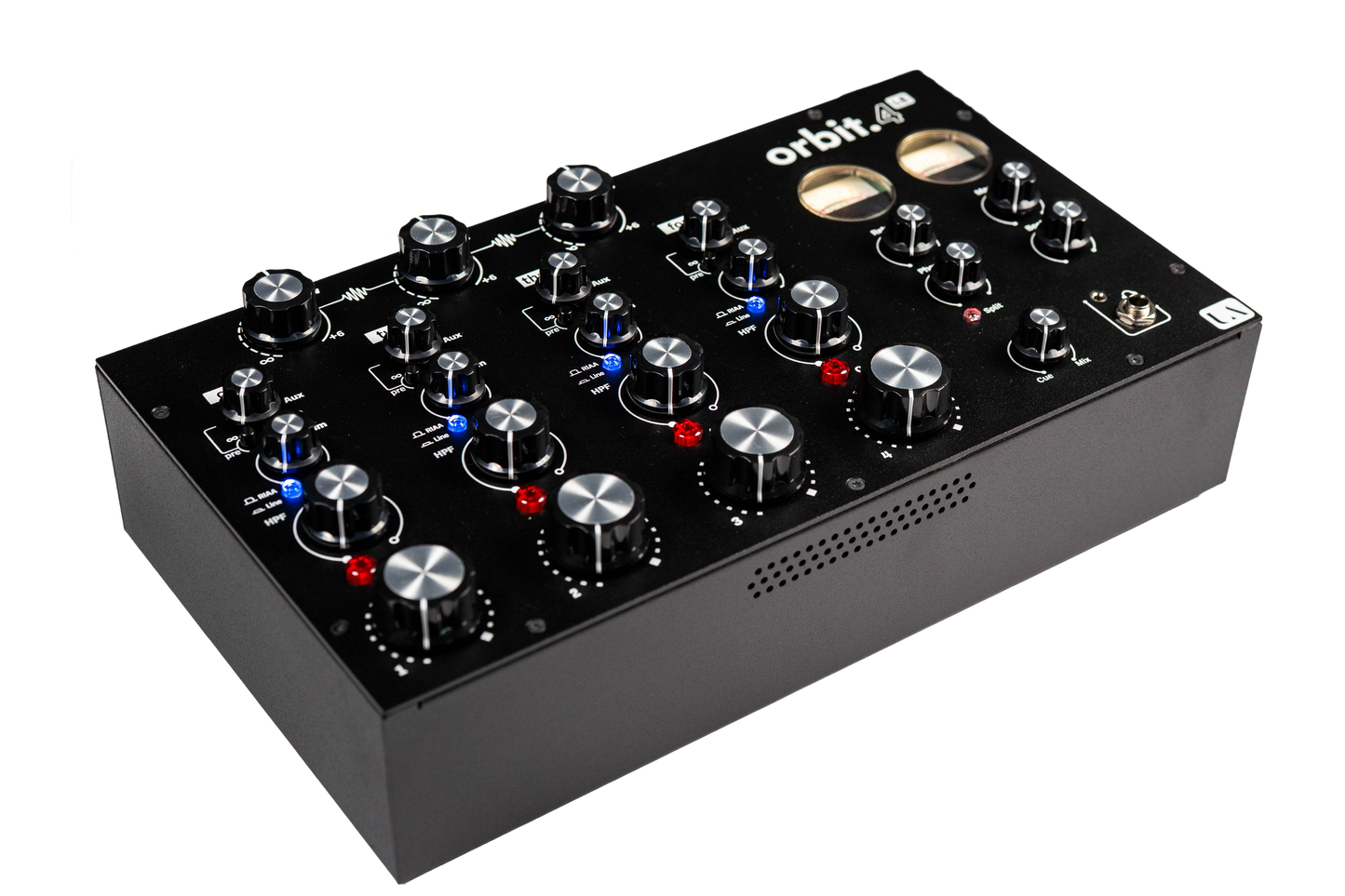

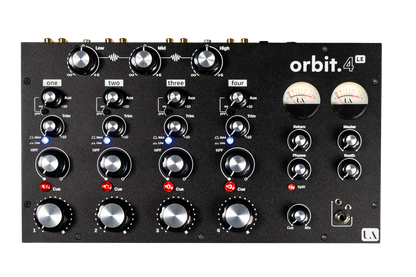

orbit.4 LE

Overview

For those with a requirement for four channels, the orbit 4 LE builds on the heritage of its smaller sibling, featuring an addition two channels, plus dual Microphone inputs in a slightly larger format.

The versatile orbit.4 LE is equally at home installed in bars and clubs as it is as the centrepiece for the discerning home producer.

Product Description

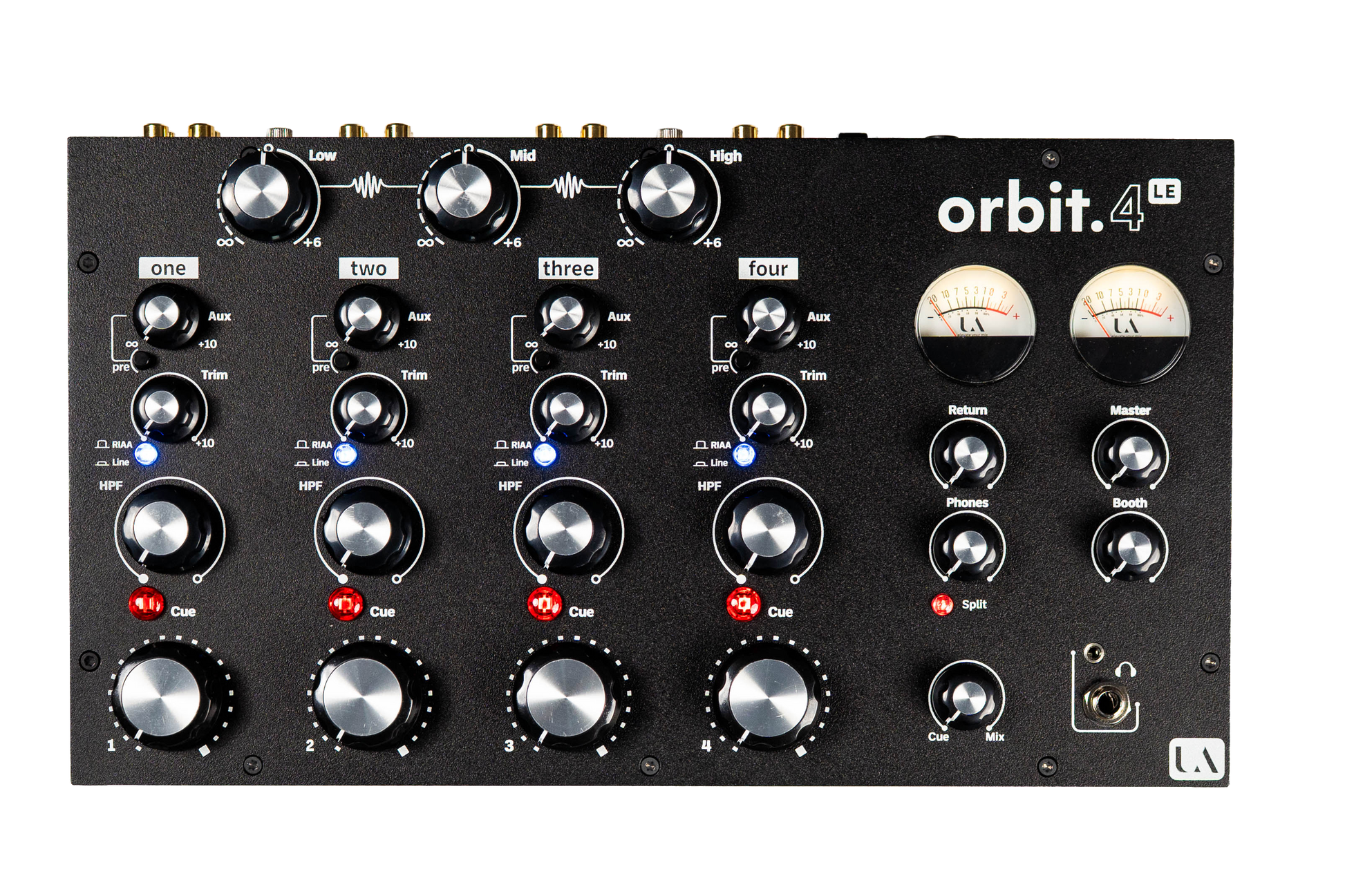

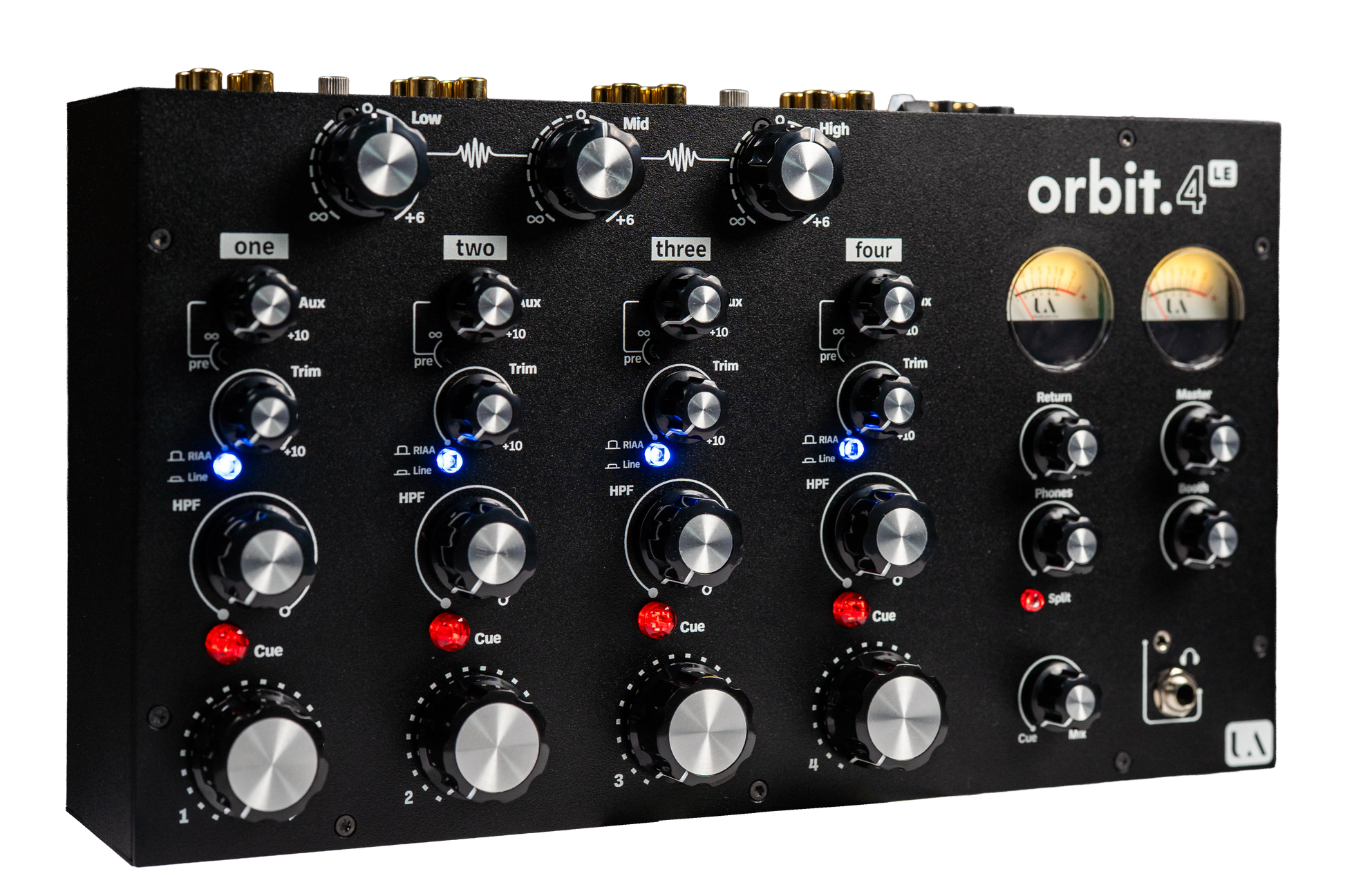

Engineered to deliver a superior DJing experience, this mixer features four fully independent channels, each equipped with high-quality phono pre-amplifier and line inputs, high-pass filter with variable Q, FX Send with pre/post switch, and a precise Alps rotary fader.

The Master section features separate level controls for Master Out, Booth Out, and Aux Return, with accurate signal monitoring via two backlit custom analogue VU meters.  The powerful headphone amp features both Split Cue and Cue/Mix, with 1/4” and 3.5mm headphone jack sockets for maximum versatility.

Additional Highlights

Add Mix—enabling control of what you hear in your phones to ensure you make the most out of your mix.

Three Band Isolator: full cut to +6db of boost per band. With crossovers between 110Hz and 3KHz giving many options to shape the sound of your mix.

HPF with variable Q: as the HPF is rotated so the Q increases in that traditional analogue way.

Master Insert Jacks: for adding additional signal processing such as compressors, graphic EQ, or effects.

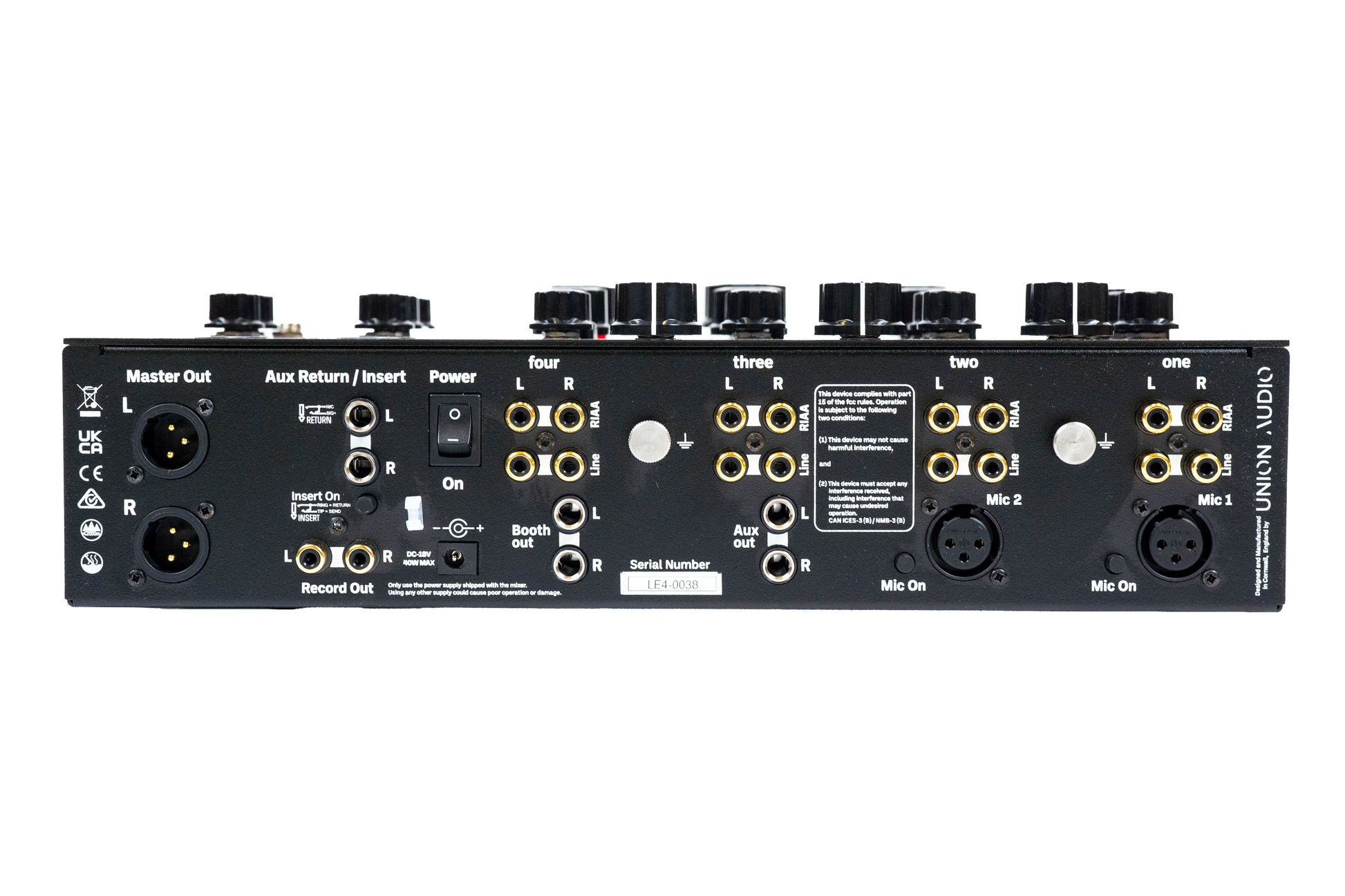

Dual Microphone Inputs: rear panel mounted with balanced XLR and ON switch.

Balanced Outputs: Master Output fully balanced XLR

Technical Specification

Distortion plus Noise (THD+N) un-weighted

Frequency Response

Shutoff and Crosstalk

Noise 22Hz to 22kHz Un-Weighted

EQ and Filter Frequency

Headphone Amplifier

Power Supply

Dimensions

Dimensions – LE4 Mixer

Packed Dimensions – LE4 Mixer
