LE fx

The Union Audio LE FX is a compact, affordable, easy to use DSP-based effects unit, designed to perfectly integrate into any DJ setup. The eight effects have been carefully developed to work with all types of electronic dance music, either adding subtly to the mix or creating dramatic breakdowns courtesy of the high level of audio manipulation this apparatus provides.

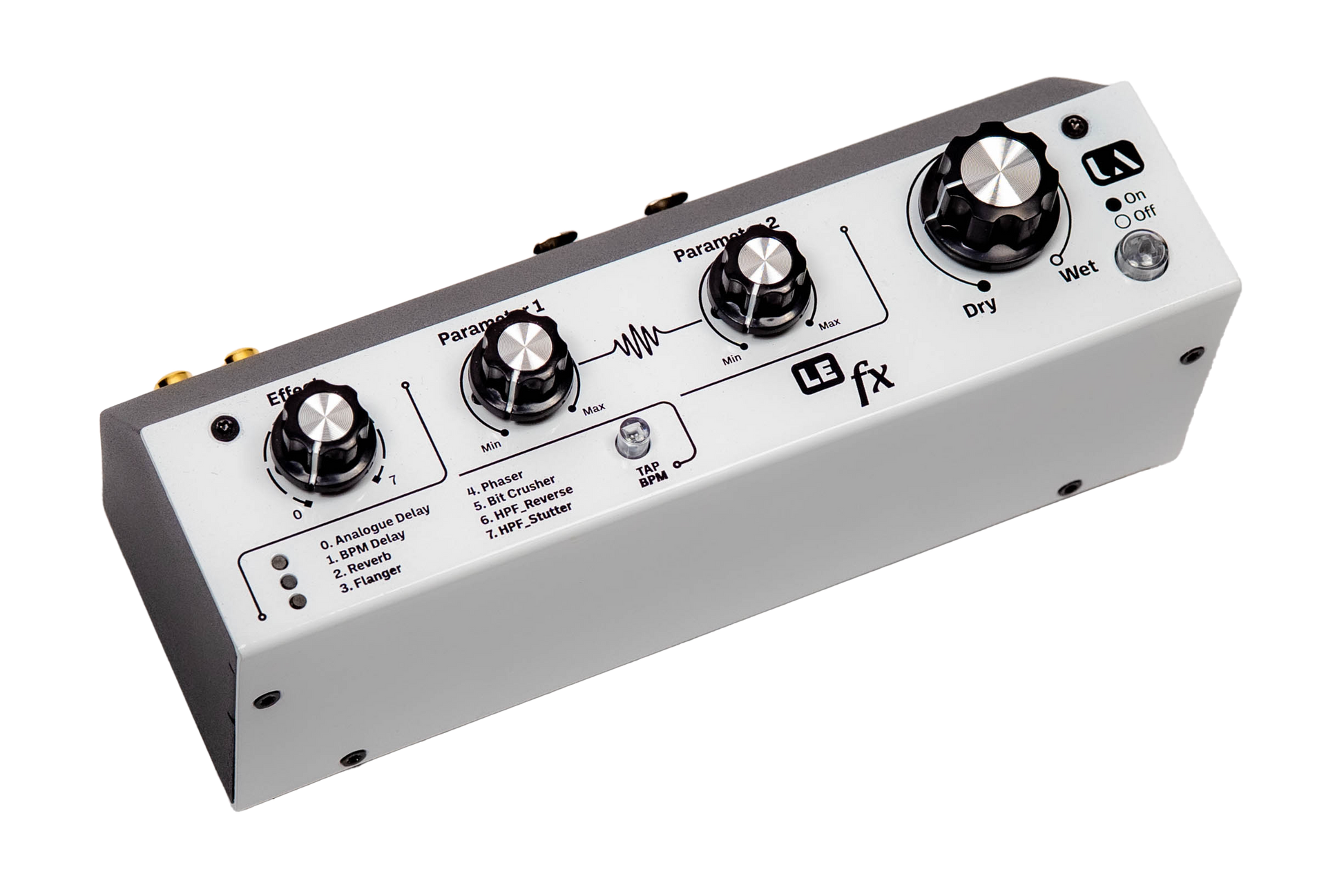

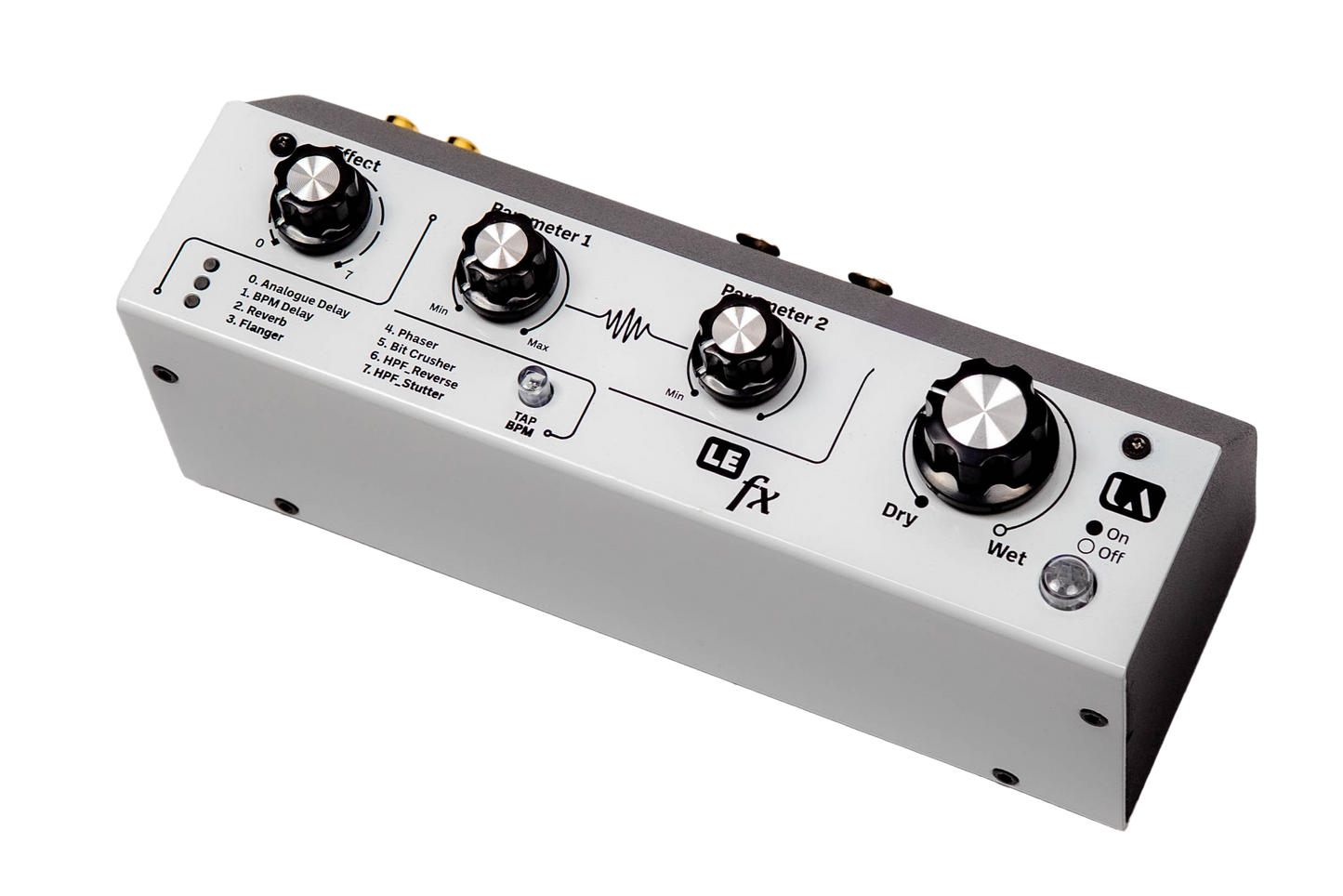

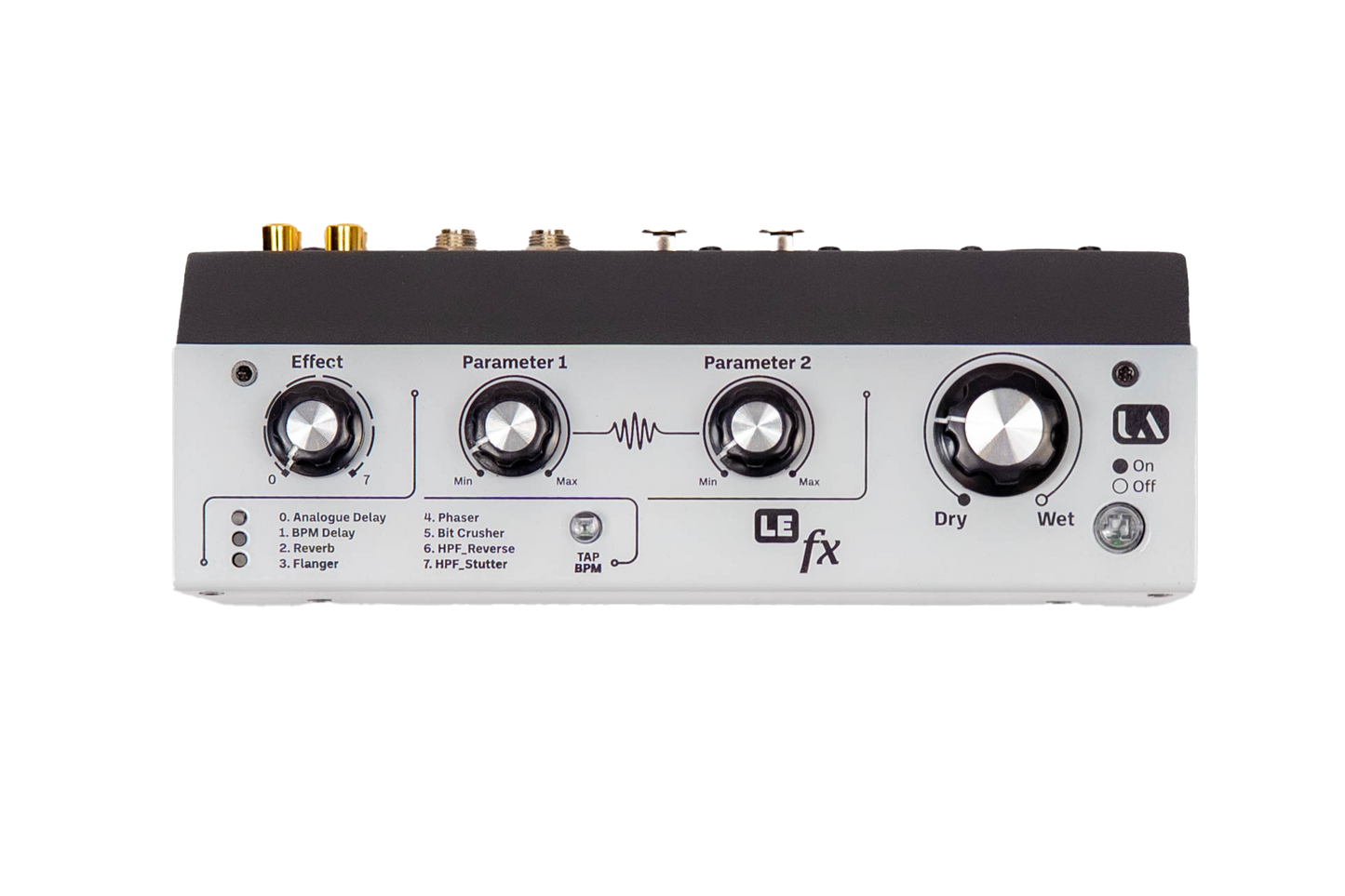

Control: The LE FX incorporates two parameter controls (their function is effect dependant) Wet/Dry signal mix, FX ON/OFF button, and Tap Tempo, along with controls for selection of the eight carefully chosen effects, including 2 delays - an analogue delay,  and a BPM delay with automatic BPM detection that will allow timing to be overridden by a tap tempo button, reverbs, flanger, phaser, bit-crusher, and two HPF effects - ‘reverse’ and ‘stutter’. An On/Off push-button seamlessly activates the effects, and can be either latching or momentary, for maximum creativity

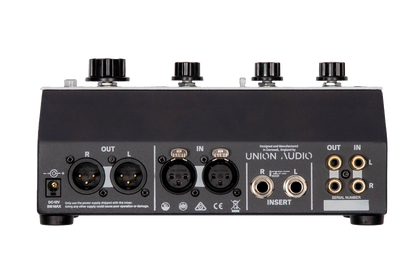

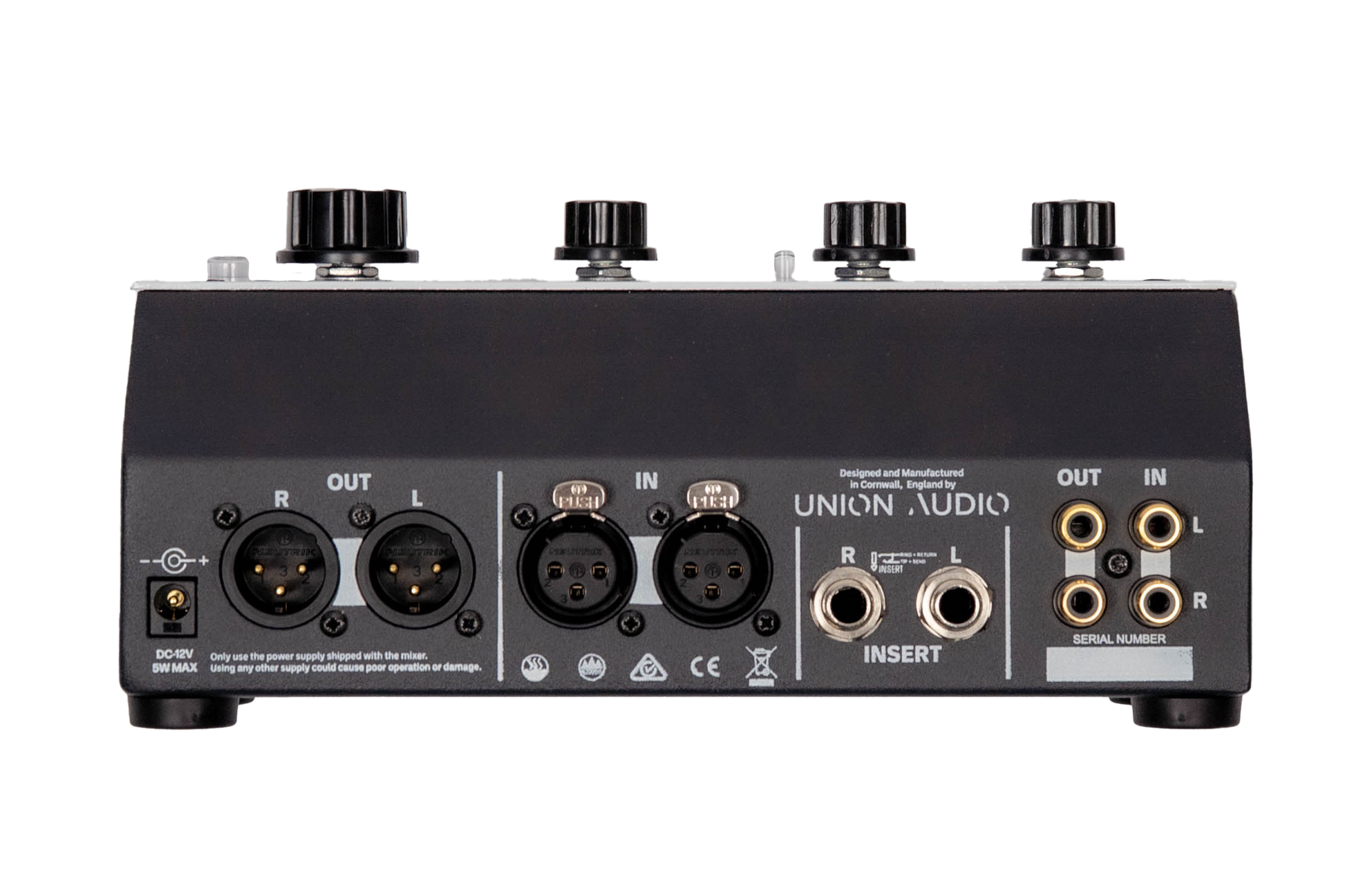

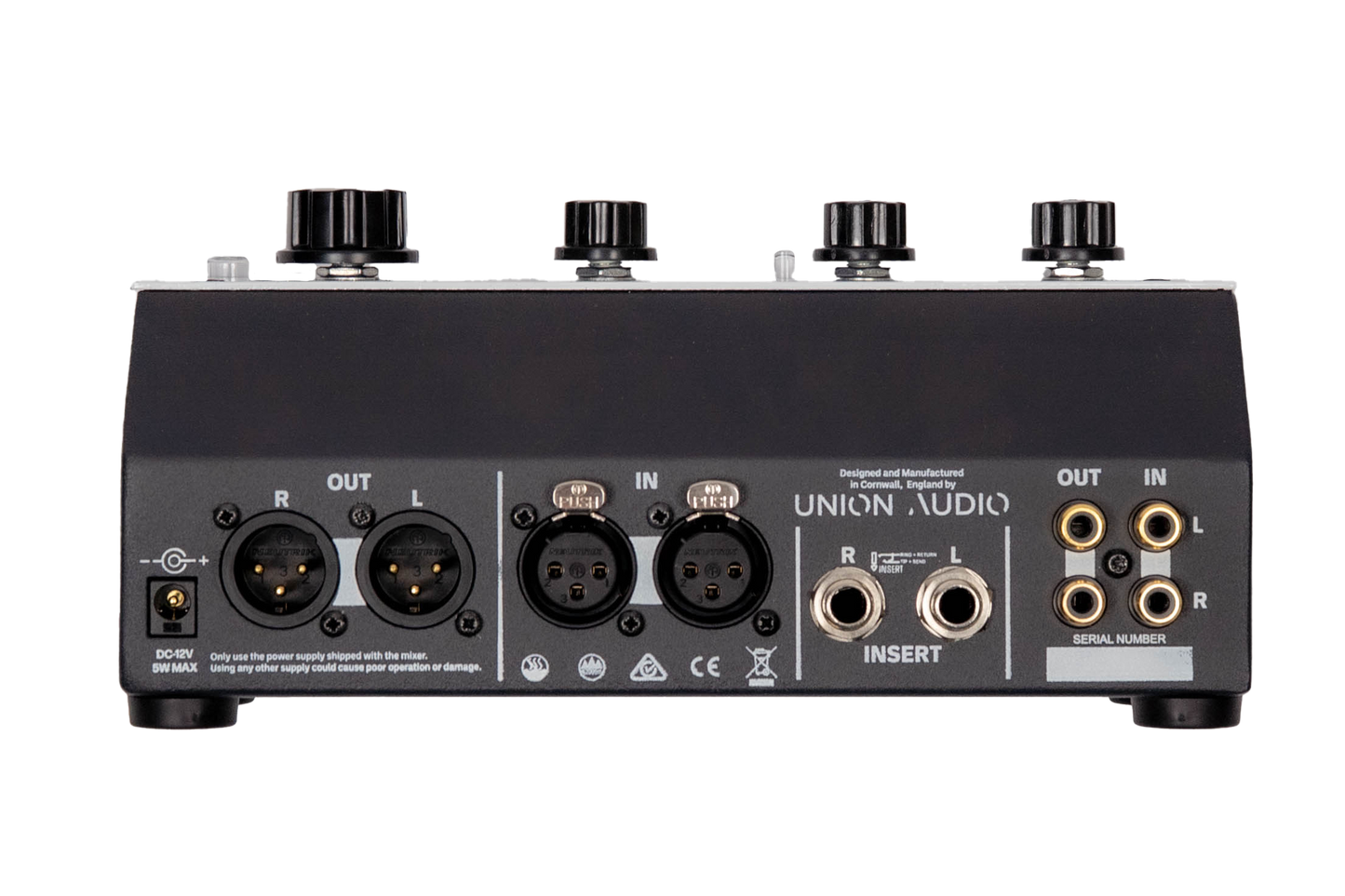

Connectivity: The LE FX has been designed to make it very easy to interface into any setup. In addition to the standard RCA IN/OUT there are two ¼” TRS INSERT sockets, plus balanced inputs/outputs on XLR

Power: Included with the LE FX is an efficient 12V universal power supply with a range of socket adaptors making it compatible for use anywhere in the world.  The external power supply feeds internal circuitry that boosts the analogue voltage rails to +/-15V DC ensuring true pro audio headroom and signal level, often missing in typical guitar/instrument derived effects units

 Tech Spec

Dimensions

Dimensions

Packed Dimensions

User Guide

UA LE fx User Guide
